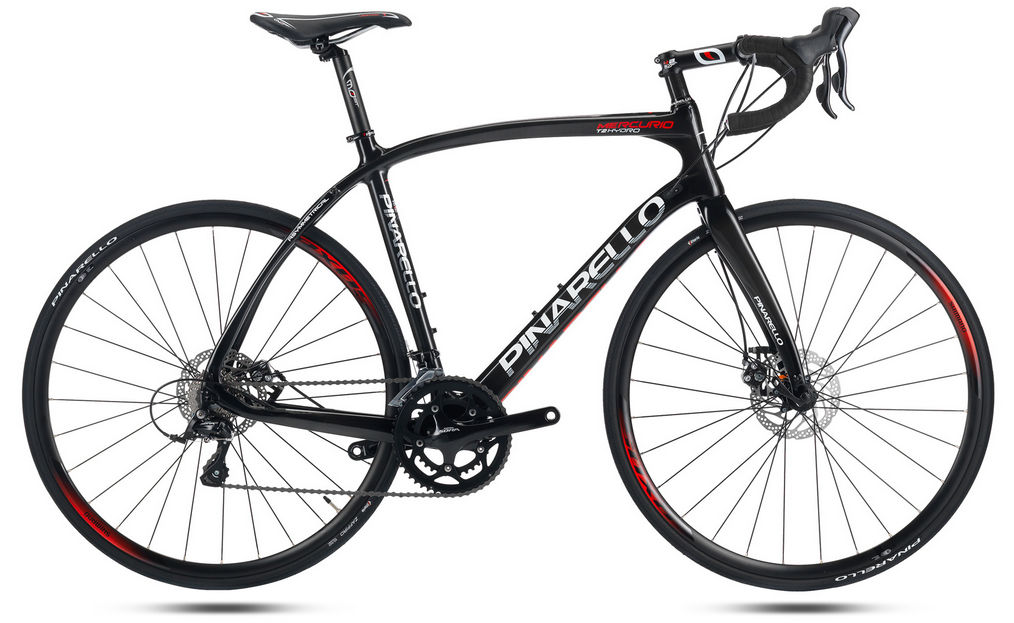

2014 Pinarello Mercurio T2 Hydro geometry
Full frame geometry for the 2014 Pinarello Mercurio T2 Hydro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 517 | 362 | 74.5 | 70 | 125 | 515 | 420 | 67 | 579 | 413 | 983 | 47 | 72 |
| S | 529 | 376 | 73.5 | 72 | 130 | 535 | 450 | 67 | 579 | 413 | 983 | 47 | 59 |
| M | 543 | 388 | 73.5 | 72 | 145 | 550 | 500 | 67 | 595 | 413 | 999 | 47 | 59 |
| L | 565 | 397 | 73.5 | 73 | 165 | 565 | 540 | 67 | 602 | 413 | 1006 | 47 | 53 |
All measurements in millimetres unless marked (°) for angles.
