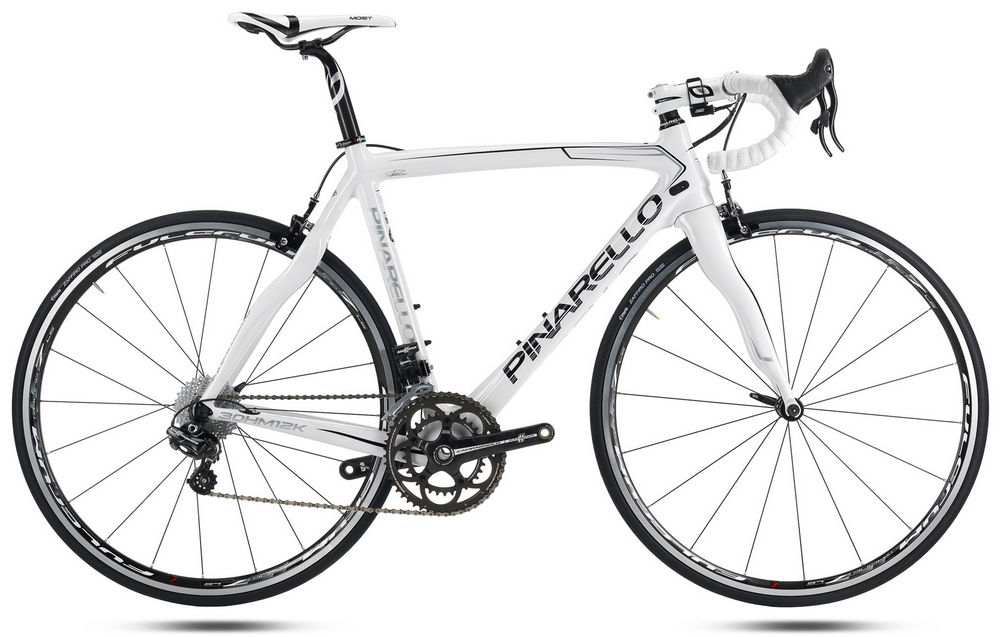

Name: 2014 Pinarello Marvel
Brand: Pinarello

Full frame geometry for the 2014 Pinarello Marvel, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
44	505	355	74.4	70	115	503	460	67	565	406	961	43	76
46.5	512	367	74.4	70.5	120	515	485	67	575	406	972	43	73
42.5EF	513	345	74	70	120	500	445	72	563	406	958	50	68
50	525	372	74	71.4	125	525	520	72	575	406	970	43	67
46EF	530	355	74	71	135	512	480	72	570	406	965	50	62
51.5	531	378	73.7	72	130	535	535	72	578	406	973	43	63
49EF	543	365	73.5	72	145	528	510	72	575	406	970	50	56
53	546	384	73.7	72.5	144	545	550	72	583	406	978	43	60
51EF	553	375	73	72	155	545	530	72	588	406	983	50	56
54	555	384	73.4	72.8	152	550	560	72	583	406	978	43	58
55	566	388	73.4	72.8	163	557	570	72	590	406	985	43	58
56	574	390	73	73.2	170	565	580	72	592	408	989	43	56
57.5	589	396	73	73.7	184	575	595	72	596	408	993	43	53
59.5	608	395	72.4	73.4	210	587	615	67	605	408	1004	43	55

All measurements in millimetres unless marked (°) for angles.
