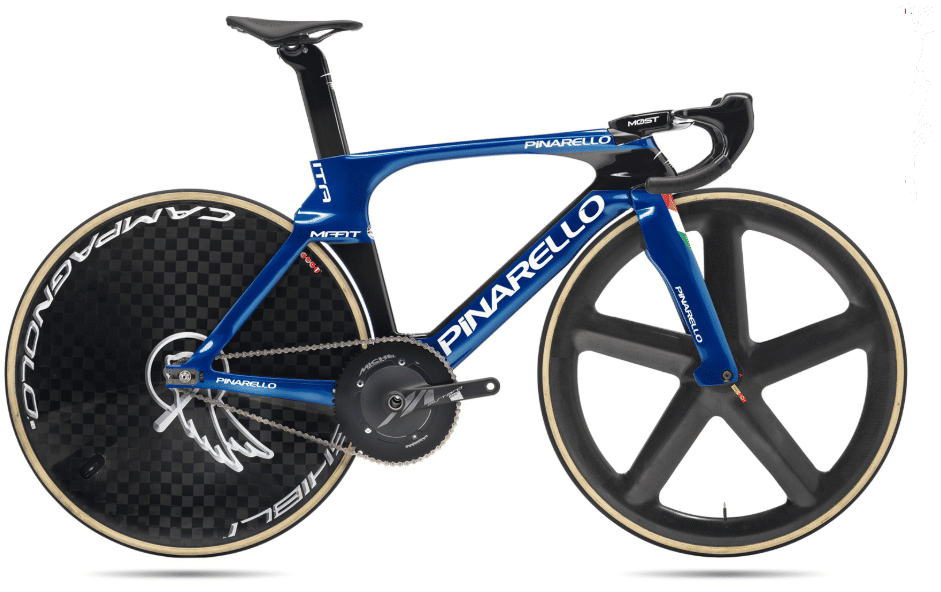

2019 Pinarello Maat MK3 geometry
Full frame geometry for the 2019 Pinarello Maat MK3, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42.5 | 471 | 428 | 76 | 73.5 | 80 | 548 | 455 | 46 | 595 | 378 | 968 | 38 | 59 |
| 45 | 486 | 440 | 76 | 74 | 95 | 563 | 480 | 46 | 607 | 378 | 980 | 38 | 56 |
| 47 | 501 | 448 | 75 | 74 | 110 | 583 | 500 | 46 | 620 | 378 | 993 | 38 | 56 |
| 48.5 | 515 | 464 | 75 | 74 | 125 | 603 | 515 | 46 | 640 | 378 | 1014 | 38 | 56 |
| 50 | 530 | 480 | 75 | 74 | 140 | 623 | 530 | 46 | 660 | 378 | 1034 | 38 | 56 |
All measurements in millimetres unless marked (°) for angles.
