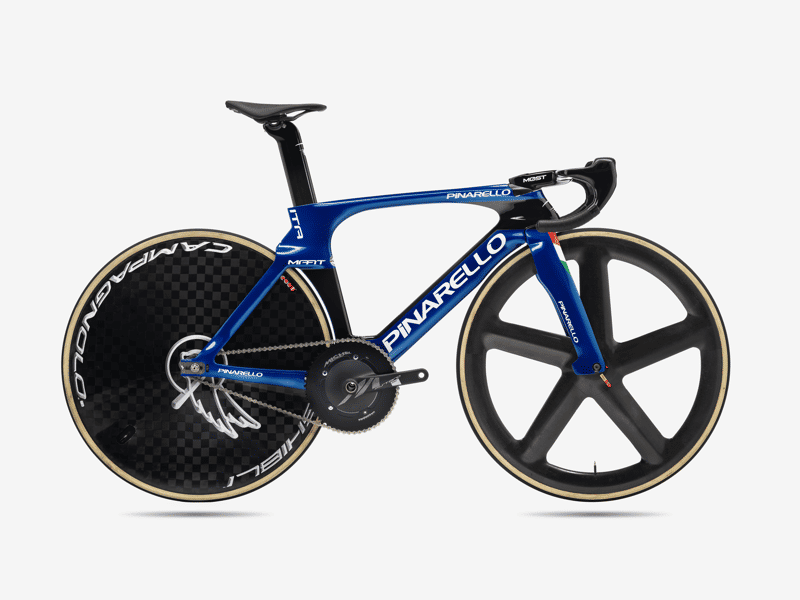

2023 Pinarello Maat Italia geometry
Full frame geometry for the 2023 Pinarello Maat Italia, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 425 | 471 | 428 | 76 | 73.5 | 80 | 548 | 455 | 46 | 378 | 38 |
| 450 | 486 | 440 | 76 | 74 | 95 | 563 | 480 | 46 | 378 | 38 |
| 470 | 501 | 448 | 75 | 74 | 110 | 583 | 500 | 46 | 378 | 38 |
| 485 | 515 | 464 | 75 | 74 | 125 | 603 | 515 | 46 | 378 | 38 |
| 500 | 530 | 470 | 75 | 74 | 140 | 613 | 530 | 46 | 378 | 38 |
All measurements in millimetres unless marked (°) for angles.
