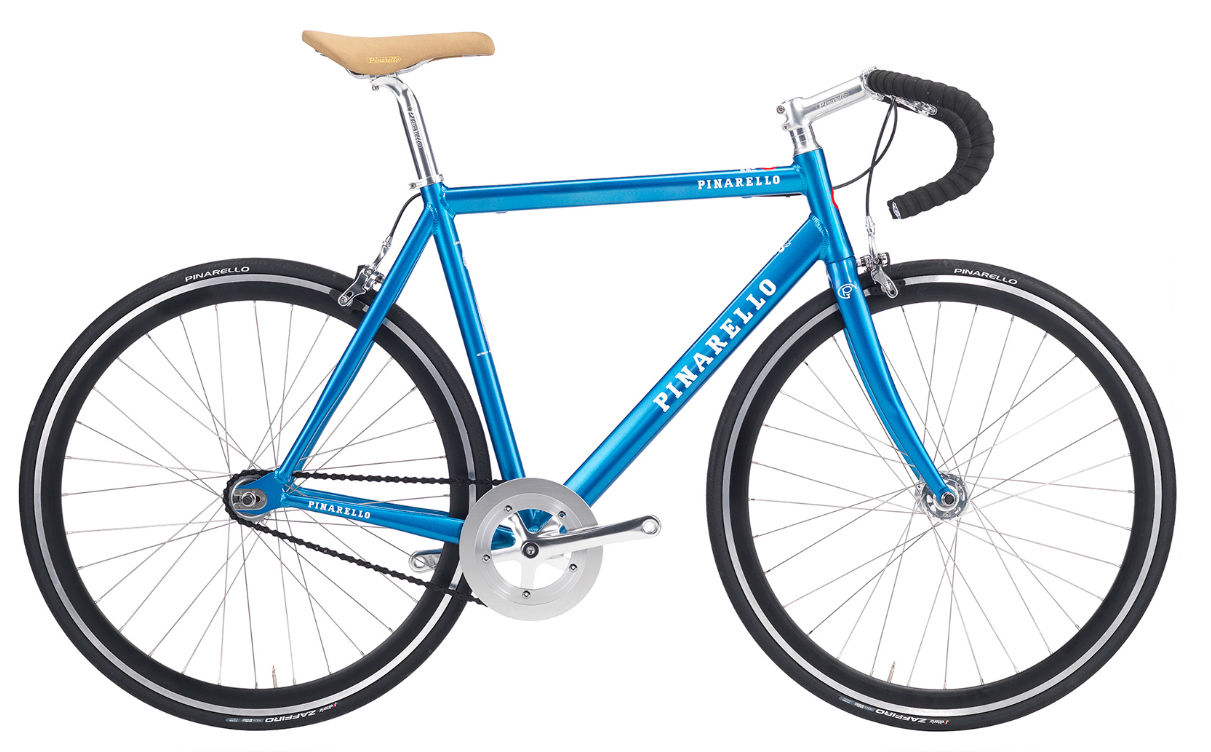

2019 Pinarello Lungavita MK II geometry
Full frame geometry for the 2019 Pinarello Lungavita MK II, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 512 | 377 | 75 | 71 | 110 | 520 | 485 | 69 | 580 | 404 | 43 |
| 48 | 541 | 379 | 74 | 72.5 | 135 | 536 | 515 | 69 | 580 | 404 | 43 |
| 51 | 566 | 384 | 73.5 | 73 | 160 | 552 | 545 | 69 | 588 | 404 | 43 |
| 53 | 582 | 394 | 73.5 | 73 | 180 | 567 | 565 | 66 | 600 | 404 | 43 |
| 56 | 605 | 397 | 73 | 73 | 204 | 582 | 595 | 66 | 612 | 404 | 43 |
All measurements in millimetres unless marked (°) for angles.
