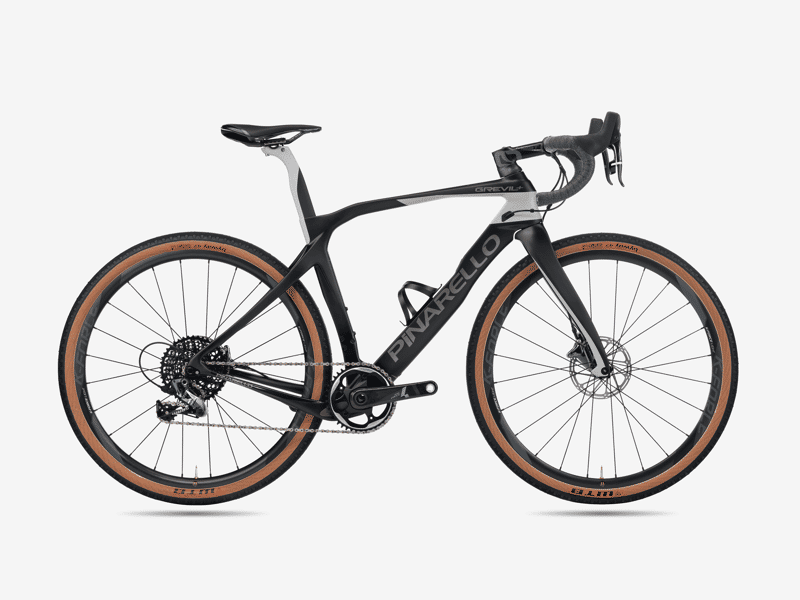

2022 Pinarello Grevil Series geometry
Full frame geometry for the 2022 Pinarello Grevil Series, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 420 | 519 | 353 | 74 | 69.5 | 105 | 510 | 440 | 67 | 420 | 50 |
| 435 | 525 | 359 | 73.5 | 70 | 110 | 520 | 470 | 67 | 420 | 50 |
| 450 | 537 | 368 | 73 | 70.5 | 120 | 535 | 500 | 67 | 420 | 50 |
| 465 | 553 | 374 | 72.5 | 71 | 135 | 550 | 530 | 67 | 420 | 50 |
| 495 | 580 | 386 | 72 | 72 | 160 | 575 | 560 | 67 | 425 | 50 |
| 525 | 611 | 402 | 72 | 72.5 | 190 | 600 | 590 | 67 | 425 | 50 |
All measurements in millimetres unless marked (°) for angles.
