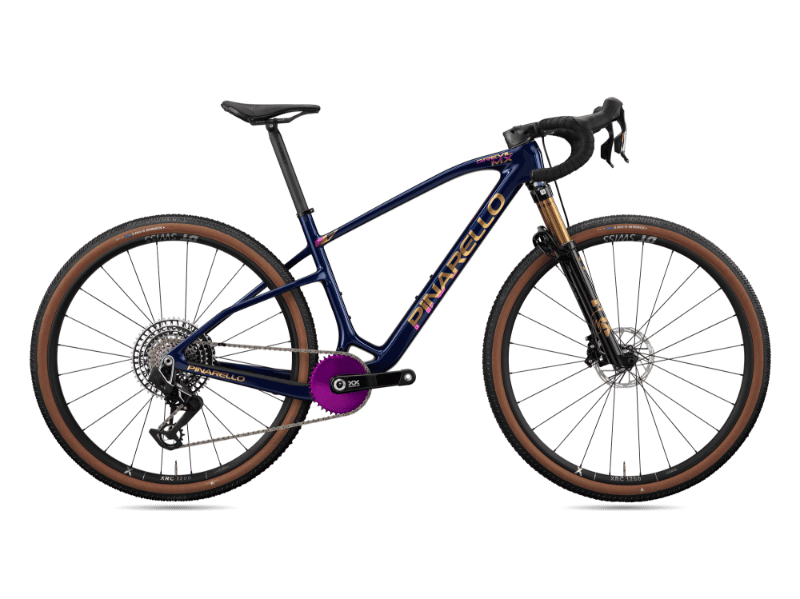

2026 Pinarello Grevil MX geometry
Full frame geometry for the 2026 Pinarello Grevil MX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 598.9 | 423.1 | 74.6 | 67.5 | 85 | 588.2 | 405 | 60 | 696 | 422 | 1112 | 44 | 103.3 |
| M | 602.7 | 450 | 75 | 67.8 | 90 | 611.5 | 435 | 58 | 723 | 425 | 1142 | 44 | 101.6 |
| L | 615.8 | 470 | 75 | 68 | 105 | 635 | 470 | 56 | 746 | 428 | 1168 | 44 | 99.8 |
| XL | 630.9 | 488 | 75 | 68.3 | 120 | 657 | 500 | 56 | 767 | 430 | 1191 | 44 | 98 |
All measurements in millimetres unless marked (°) for angles.
