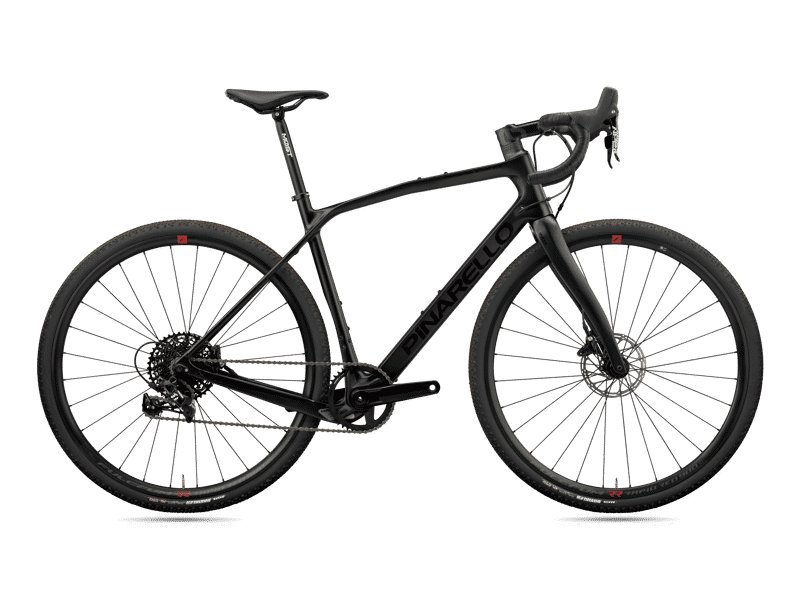

2023 Pinarello Granger X geometry
Full frame geometry for the 2023 Pinarello Granger X, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|
| 470 | 543.4 | 363 | 74.5 | 69.8 | 125 | 72 | 430 | 50 |
| 500 | 556 | 369.9 | 74 | 70 | 137 | 72 | 430 | 50 |
| 530 | 573.6 | 378.4 | 73.8 | 70.3 | 155 | 72 | 430 | 50 |
| 550 | 590.8 | 386.9 | 73.5 | 71 | 169 | 72 | 430 | 47 |
| 575 | 607 | 394.5 | 73 | 71.3 | 185 | 72 | 430 | 47 |
| 600 | 624.1 | 402.2 | 72.5 | 71.5 | 202 | 72 | 430 | 47 |
All measurements in millimetres unless marked (°) for angles.
