2016 Pinarello Gan geometry

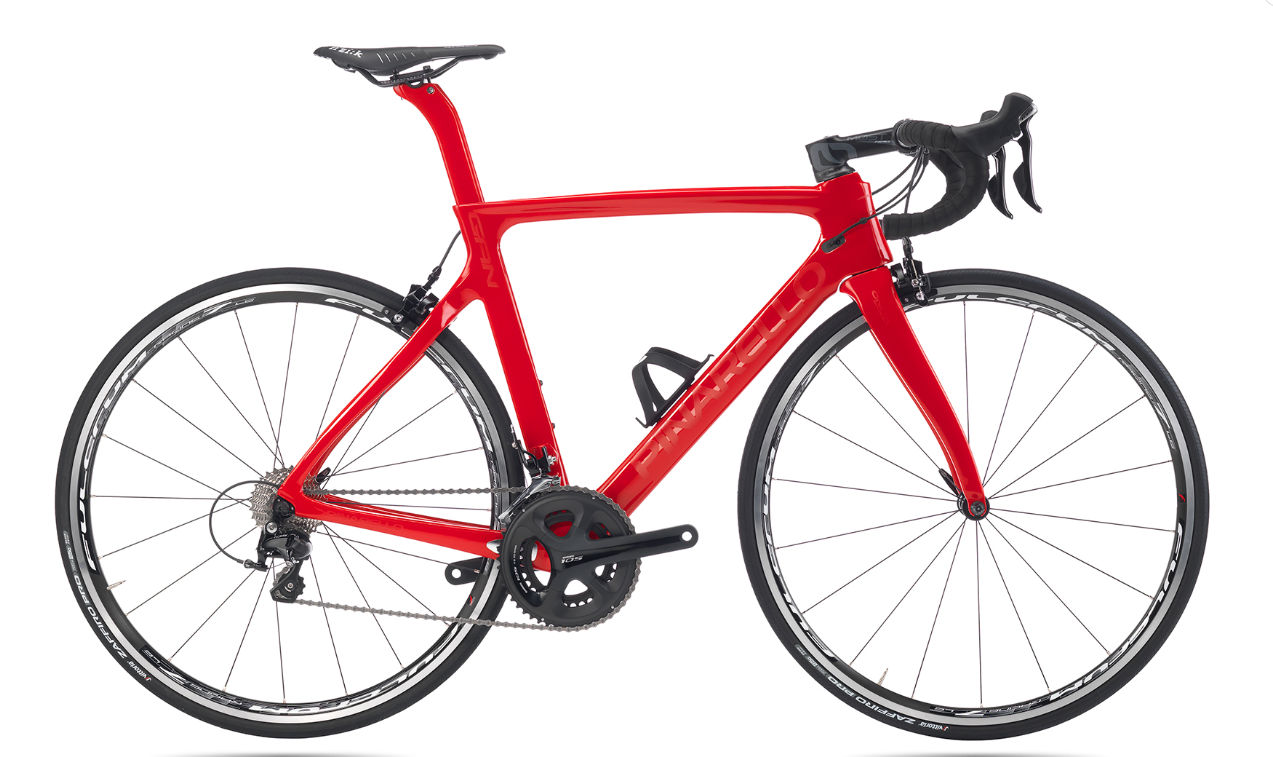

Name: 2016 Pinarello Gan
Brand: Pinarello

Full frame geometry for the 2016 Pinarello Gan, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
42.5EF	504	348	74	70	115	500	67	563	408	961	50	68
44	506	354	74.4	70	115	503	67	565	408	963	43	76
46.5	513	367	74.4	70.5	120	515	67	575	408	974	43	73
46EF	522	358	74	71	130	512	67	570	408	969	50	62
50	525	372	74	71.4	125	525	72	575	408	972	43	67
51.5	532	378	73.7	72	130	535	72	577	408	974	43	63
53	543	386	73.7	72.5	139	545	72	583	408	980	43	60
49EF	544	365	73.5	72	145	528	72	575	408	972	50	56
51EF	554	374	73	72	155	545	72	588	408	985	50	56
54	556	384	73.4	72.8	152	550	72	583	408	980	43	58
55	567	387	73.4	72.8	163	557	72	590	408	987	43	58
56	575	390	73	73.2	170	565	72	591	410	990	43	56
57.5	590	395	73	73.7	184	575	72	596	410	995	43	53
59.5	609	395	72.4	73.4	210	587	67	605	410	1006	43	55

All measurements in millimetres unless marked (°) for angles.
