2019 Pinarello Gan K Disk geometry

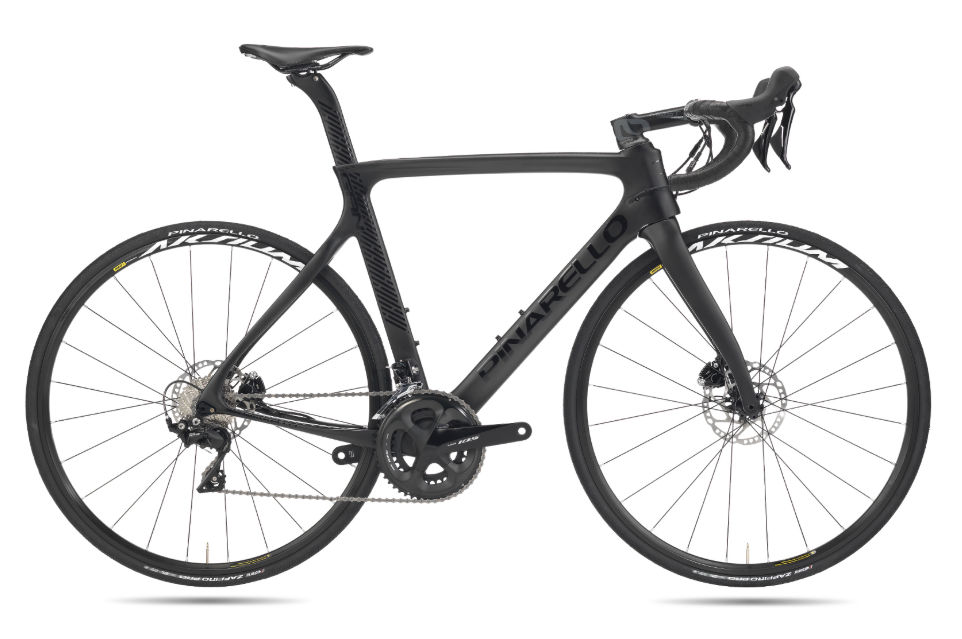

Name: 2019 Pinarello Gan K Disk
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Gan K Disk, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
42.5	504	348	74.8	69.2	112	495	435	729	67	567	415	973	47	78
44	510	352	74.5	69.5	117	502	450	740	67	572	415	978	47	77
47	519	361	74	70	120	515	480	756	72	578	415	982	47	73
50	530	370	73.5	71	128	530	510	777	72	582	415	986	47	67
53	550	381	73	72	145	550	540	804	72	590	415	994	47	61
56	576	388	72.5	72.5	170	570	570	833	72	601	415	1005	47	58
59	614	396	72	72.5	215	595	600	874	67	621	415	1027	47	58

All measurements in millimetres unless marked (°) for angles.
