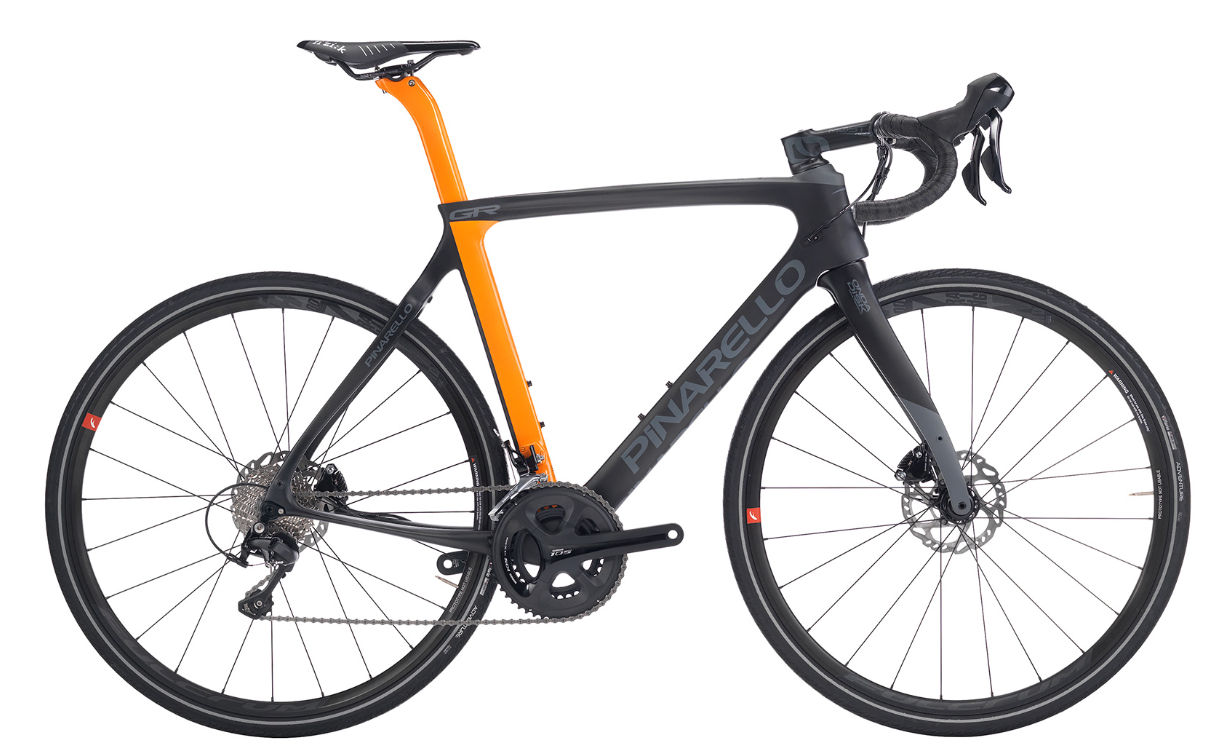

2019 Pinarello Gan GR Disk geometry
Full frame geometry for the 2019 Pinarello Gan GR Disk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 42.5 | 522 | 349 | 74.5 | 69.5 | 120 | 505 | 62 | 578 | 430 | 50 |
| 44 | 527 | 354 | 74.5 | 69.5 | 120 | 510 | 67 | 583 | 430 | 50 |
| 47 | 534 | 366 | 74 | 70 | 125 | 525 | 67 | 592 | 430 | 50 |
| 50 | 547 | 375 | 73.5 | 71 | 135 | 540 | 67 | 597 | 430 | 50 |
| 53 | 565 | 381 | 73 | 72 | 150 | 555 | 67 | 599 | 430 | 50 |
| 56 | 591 | 389 | 72.5 | 72.5 | 175 | 575 | 67 | 610 | 430 | 50 |
| 59 | 615 | 396 | 72 | 72.5 | 200 | 595 | 67 | 624 | 430 | 50 |
All measurements in millimetres unless marked (°) for angles.
