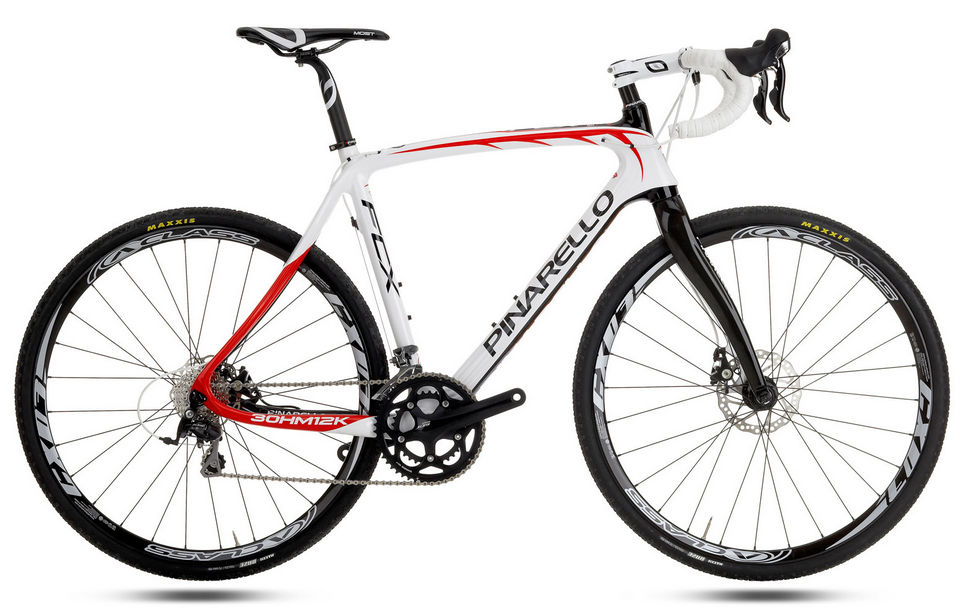

2014 Pinarello FCX Hydro geometry
Full frame geometry for the 2014 Pinarello FCX Hydro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 47 | 535 | 371 | 74.5 | 71 | 120 | 525 | 490 | 60 | 591 | 425 | 1009 | 50 | 68 |
| 50 | 568 | 372 | 74 | 71 | 155 | 540 | 530 | 60 | 603 | 425 | 1021 | 50 | 68 |
| 53 | 587 | 377 | 73.5 | 71 | 175 | 555 | 550 | 60 | 615 | 425 | 1033 | 50 | 68 |
| 56 | 606 | 393 | 73 | 72 | 190 | 580 | 580 | 60 | 626 | 425 | 1044 | 50 | 61 |
All measurements in millimetres unless marked (°) for angles.
