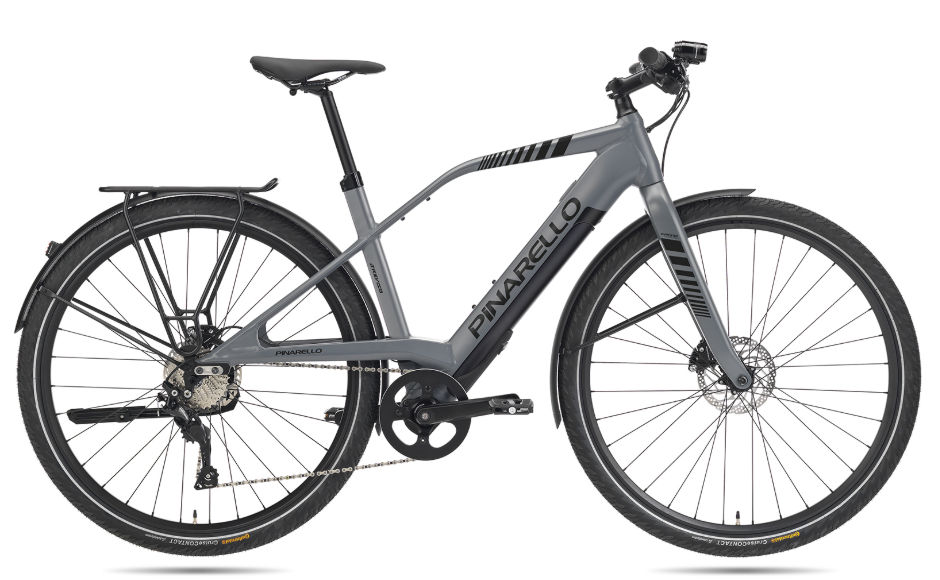

2019 Pinarello E-Treviso geometry
Full frame geometry for the 2019 Pinarello E-Treviso, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| S | 579 | 385 | 74 | 71 | 130 | 551 | 450 | 772 | 70 | 460 |
| M | 595 | 400 | 73 | 71.5 | 145 | 582 | 500 | 807 | 70 | 460 |
| L | 625 | 425 | 72 | 72 | 175 | 628 | 550 | 850 | 70 | 460 |
All measurements in millimetres unless marked (°) for angles.
