2015 Pinarello Dogma K8-S geometry

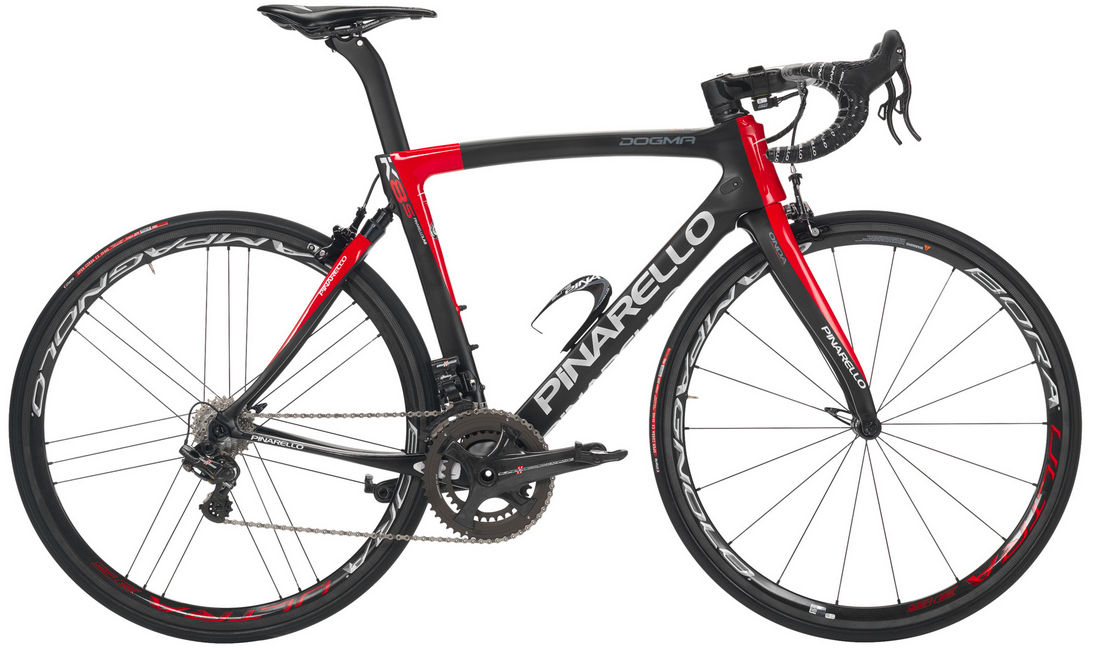

Name: 2015 Pinarello Dogma K8-S
Brand: Pinarello

Full frame geometry for the 2015 Pinarello Dogma K8-S, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
44	508	353	74.4	69.5	115	503	67	572	420	983	47	75
46.5	520	364	74.4	70	120	515	72	581	420	990	47	72
50	528	371	74	70.9	125	525	72	583	420	992	47	66
51.5	535	377	73.7	71.5	130	535	72	586	415	990	47	62
53	550	383	73.7	72	144	545	72	592	415	996	47	59
54	559	383	73.4	72.3	152	550	72	592	415	996	47	57
55	569	386	73.4	72.3	163	557	72	599	415	1003	47	57
56	577	388	73	72.7	170	565	72	599	415	1003	47	55
57.5	593	394	73	73.2	184	575	72	605	415	1009	47	52
59.5	621	391	72.4	72.9	220	587	67	614	415	1020	47	54

All measurements in millimetres unless marked (°) for angles.
