2019 Pinarello Dogma K10 geometry

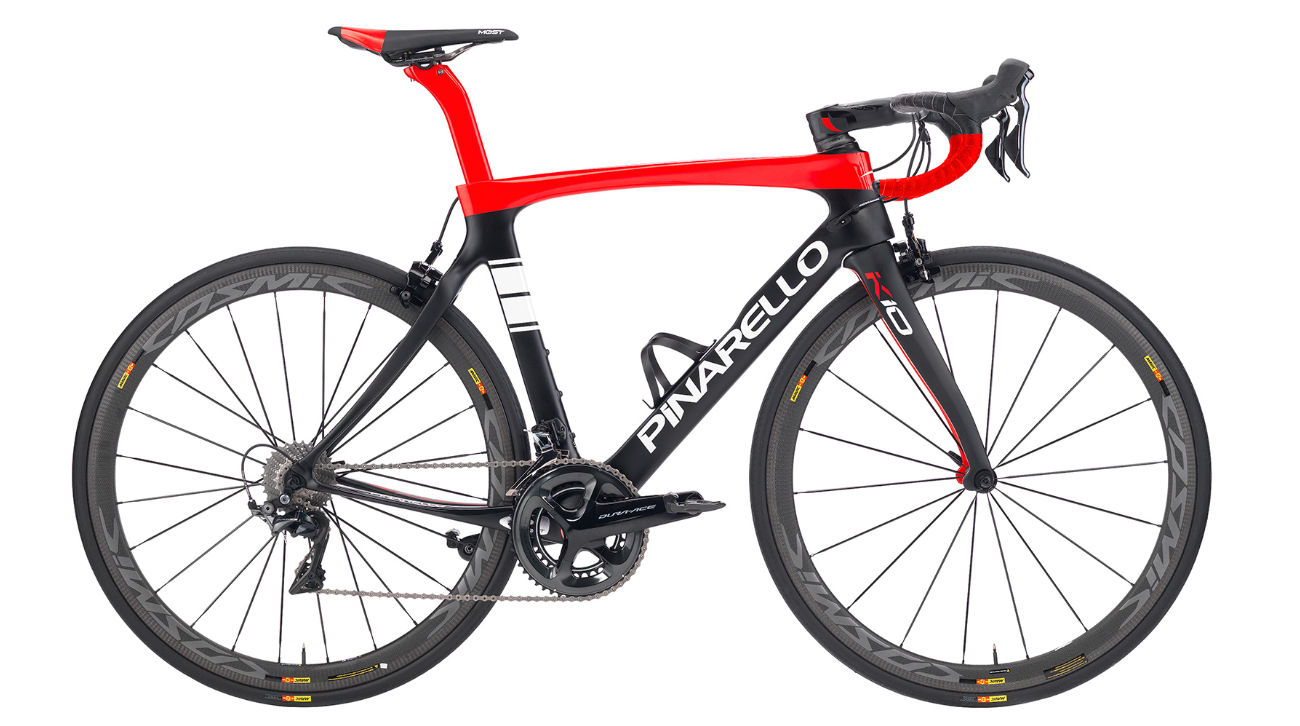

Name: 2019 Pinarello Dogma K10
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Dogma K10, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Fork rake (mm)
44	508	353	74.4	69.5	115	503	440	67	572	420	47
46.5	520	364	74.4	70	120	515	463	72	581	420	47
50	528	371	74	70.9	125	525	495	72	583	420	47
51.5	535	377	73.7	71.5	130	535	508	72	586	415	47
53	550	383	73.7	72	144	545	520	72	892	415	47
54	559	383	73.4	72.3	152	550	528	72	592	415	47
55	569	386	73.4	72.3	163	557	535	72	599	415	47
56	577	388	73	72.7	170	565	543	72	599	415	47
57.5	593	394	73	73.2	184	575	558	72	605	415	47
59.5	621	391	72.4	72.9	220	587	578	67	614	415	47

All measurements in millimetres unless marked (°) for angles.
