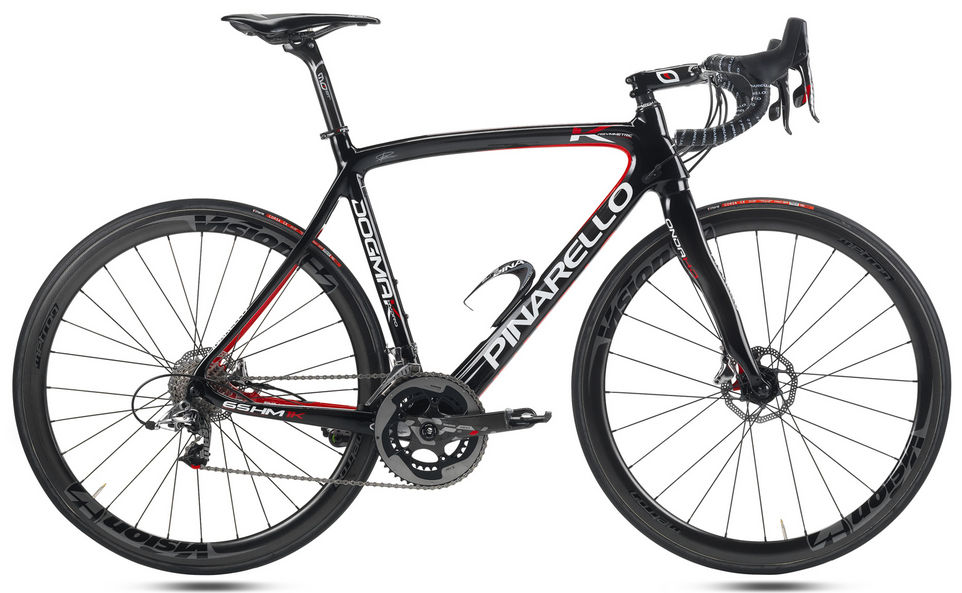

2014 Pinarello Dogma K Hydro geometry
Full frame geometry for the 2014 Pinarello Dogma K Hydro, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 42 | 503 | 342 | 73.4 | 69.5 | 110 | 500 | 450 | 67 | 561 | 413 | 965 | 47 | 75 |
| 45 | 518 | 362 | 73.4 | 71 | 120 | 520 | 480 | 67 | 571 | 413 | 975 | 47 | 65 |
| 48.5 | 544 | 374 | 73 | 73 | 135 | 540 | 515 | 72 | 573 | 413 | 975 | 47 | 53 |
| 51 | 558 | 384 | 73 | 73 | 150 | 555 | 540 | 72 | 588 | 413 | 990 | 47 | 53 |
| 52 | 563 | 388 | 73 | 73 | 155 | 560 | 550 | 72 | 593 | 413 | 995 | 47 | 53 |
| 53 | 573 | 395 | 73 | 73 | 165 | 570 | 560 | 72 | 602 | 413 | 1004 | 47 | 53 |
| 54 | 587 | 401 | 73 | 73 | 180 | 580 | 570 | 72 | 612 | 413 | 1014 | 47 | 53 |
| 55 | 606 | 395 | 72.5 | 73 | 200 | 585 | 580 | 72 | 612 | 413 | 1014 | 47 | 53 |
All measurements in millimetres unless marked (°) for angles.
