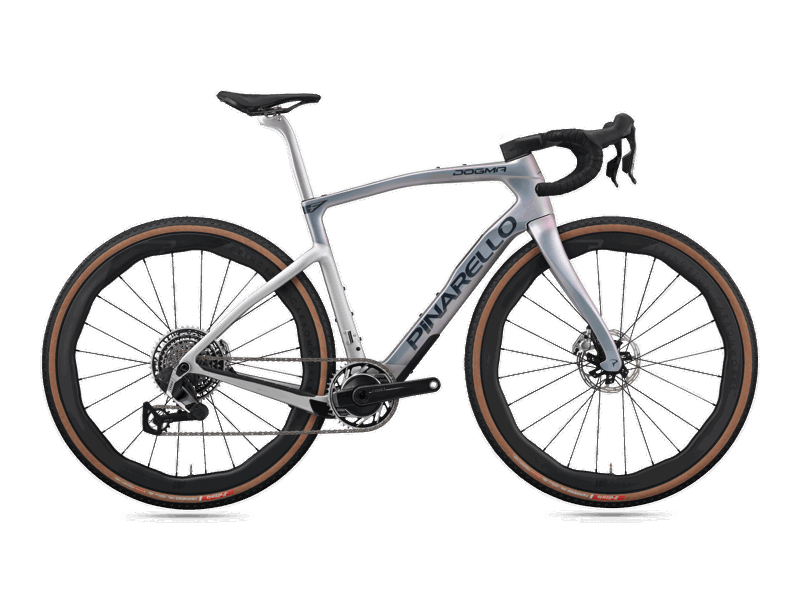

2025 Pinarello Dogma GR geometry
Full frame geometry for the 2025 Pinarello Dogma GR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 430 | 536 | 355 | 74.4 | 70 | 115 | 515 | 430 | 72 | 425 | 996 | 50 |
| 465 | 543.6 | 361.1 | 74.4 | 70.5 | 121 | 520 | 465 | 72 | 425 | 1000 | 50 |
| 500 | 552.1 | 366.9 | 74 | 70.5 | 130 | 530 | 500 | 72 | 425 | 1008.8 | 50 |
| 515 | 560.6 | 372.6 | 73.7 | 71 | 137 | 540 | 515 | 72 | 425 | 1012.6 | 50 |
| 530 | 572.9 | 379.1 | 73.7 | 71 | 150 | 550 | 530 | 72 | 425 | 1023.4 | 50 |
| 545 | 587.1 | 384 | 73.4 | 71 | 165 | 562 | 545 | 72 | 425 | 1033.1 | 50 |
| 560 | 603.3 | 388.6 | 73 | 71.5 | 180 | 575 | 560 | 72 | 427 | 1037.9 | 50 |
| 575 | 624.3 | 392.7 | 73 | 72 | 200 | 585 | 575 | 72 | 427 | 1043.6 | 50 |
| 595 | 653 | 398 | 72.4 | 72.5 | 228 | 605 | 595 | 72 | 427 | 1052.5 | 50 |
All measurements in millimetres unless marked (°) for angles.
