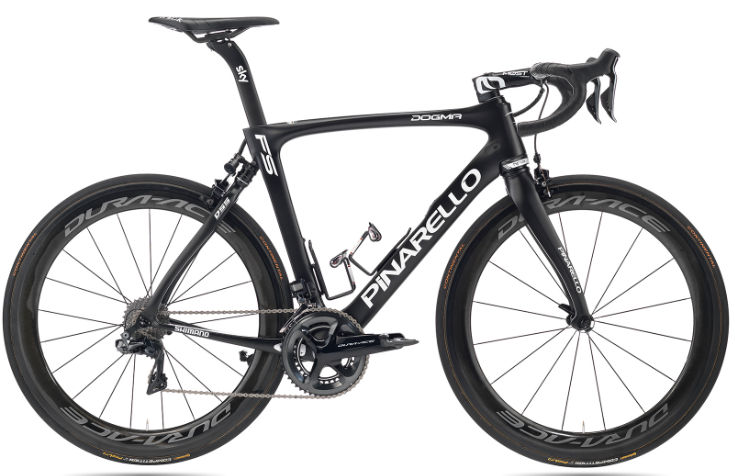

2019 Pinarello Dogma FS geometry
Full frame geometry for the 2019 Pinarello Dogma FS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 53 | 564 | 378 | 73.7 | 72 | 127 | 545 | 519 | 72 | 588 | 415 | 43 |
| 55 | 569 | 386 | 73.4 | 72.3 | 132 | 557 | 534 | 72 | 594 | 415 | 43 |
| 56 | 579 | 388 | 73 | 72.7 | 140 | 565 | 542 | 72 | 595 | 415 | 43 |
| 57 | 593 | 394 | 73 | 73.2 | 153 | 575 | 557 | 72 | 600 | 415 | 43 |
All measurements in millimetres unless marked (°) for angles.
