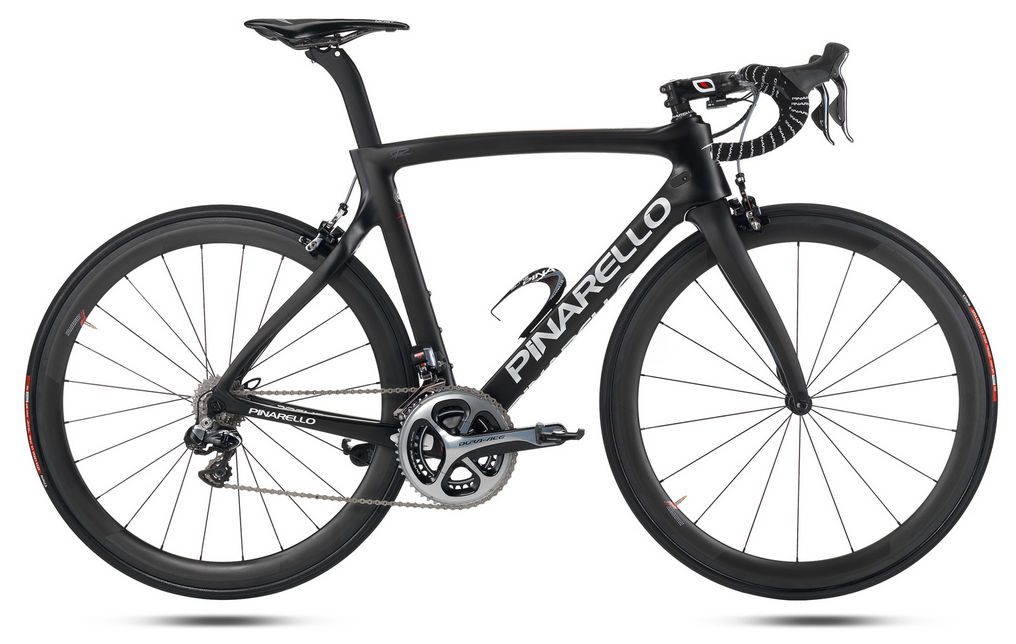

2014 Pinarello Dogma F8 geometry

Name: 2014 Pinarello Dogma F8
Brand: Pinarello

Full frame geometry for the 2014 Pinarello Dogma F8, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
420	493	351	74.4	69.2	105	498	67	564	406	960	43	81
440	501	357	74.4	70	110	503	67	564	406	960	43	76
465	512	367	74.4	70.5	115	515	72	573	406	968	43	73
500	520	374	74	71.4	120	525	72	575	406	970	43	67
470	525	373	74	71.4	125	525	72	575	406	970	43	67
515	527	380	73.7	72	125	535	72	577	406	972	43	63
530	542	386	73.7	72.5	139	545	72	583	406	978	43	60
540	550	386	73.4	72.8	147	550	72	583	406	978	43	58
550	561	389	73.4	72.8	158	557	72	590	408	987	43	58
560	569	391	73	73.2	165	565	72	591	408	988	43	56
575	584	397	73	73.7	179	575	72	596	408	993	43	53
595	612	394	72.4	73.4	215	587	67	605	408	1004	43	55
620	651	410	72	73.4	255	620	67	633	411	1035	43	55

All measurements in millimetres unless marked (°) for angles.
