2019 Pinarello Dogma F12 geometry

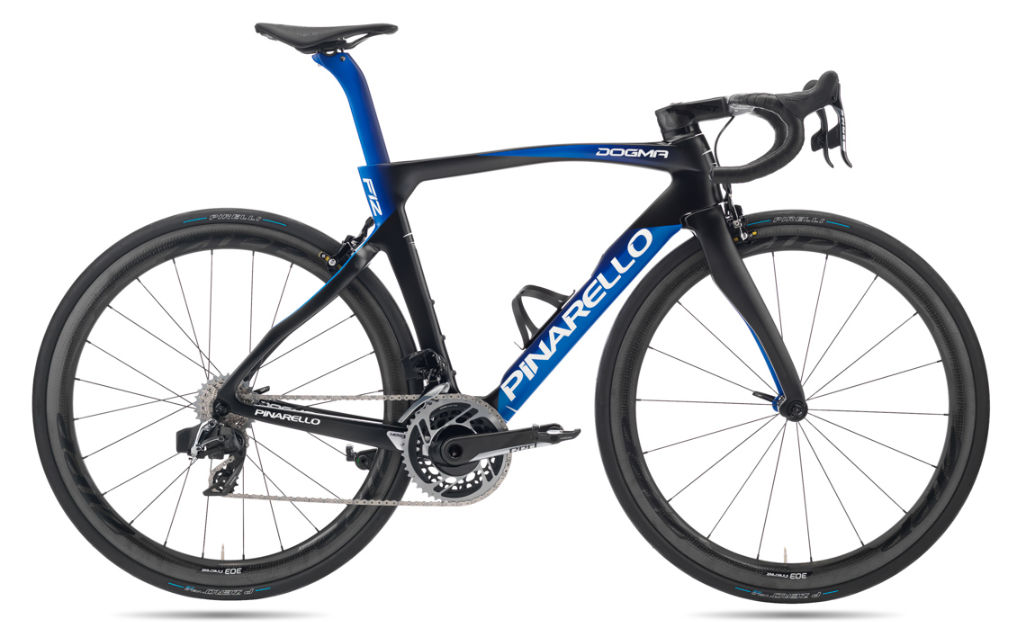

Name: 2019 Pinarello Dogma F12
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Dogma F12, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Fork rake (mm)
42	498	349	74.4	69.2	94	498	415	67	564	406	43
44	506	354	74.4	70	99	503	435	67	564	406	43
46.5	518	365	74.4	70.5	104	515	455	72	573	406	43
50	525	372	74	71.4	109	525	480	72	575	406	43
47	530	370	74	71.4	114	525	455	72	575	406	43
51.5	532	378	73.7	72	114	535	495	72	577	406	43
53	537	383	73.7	72.5	123	545	510	72	583	406	43
54	551	385	73.4	72.8	131	550	520	72	583	406	43
55	562	389	73.4	72.8	142	557	530	72	590	408	43
56	570	391	73	73.2	150	565	540	72	591	408	43
57.5	585	397	73	73.7	163	575	555	72	596	408	43
59.5	613	393	72.4	73.4	199	587	575	67	605	408	43
62	652	410	72	73.4	239	620	615	67	633	411	43

All measurements in millimetres unless marked (°) for angles.
