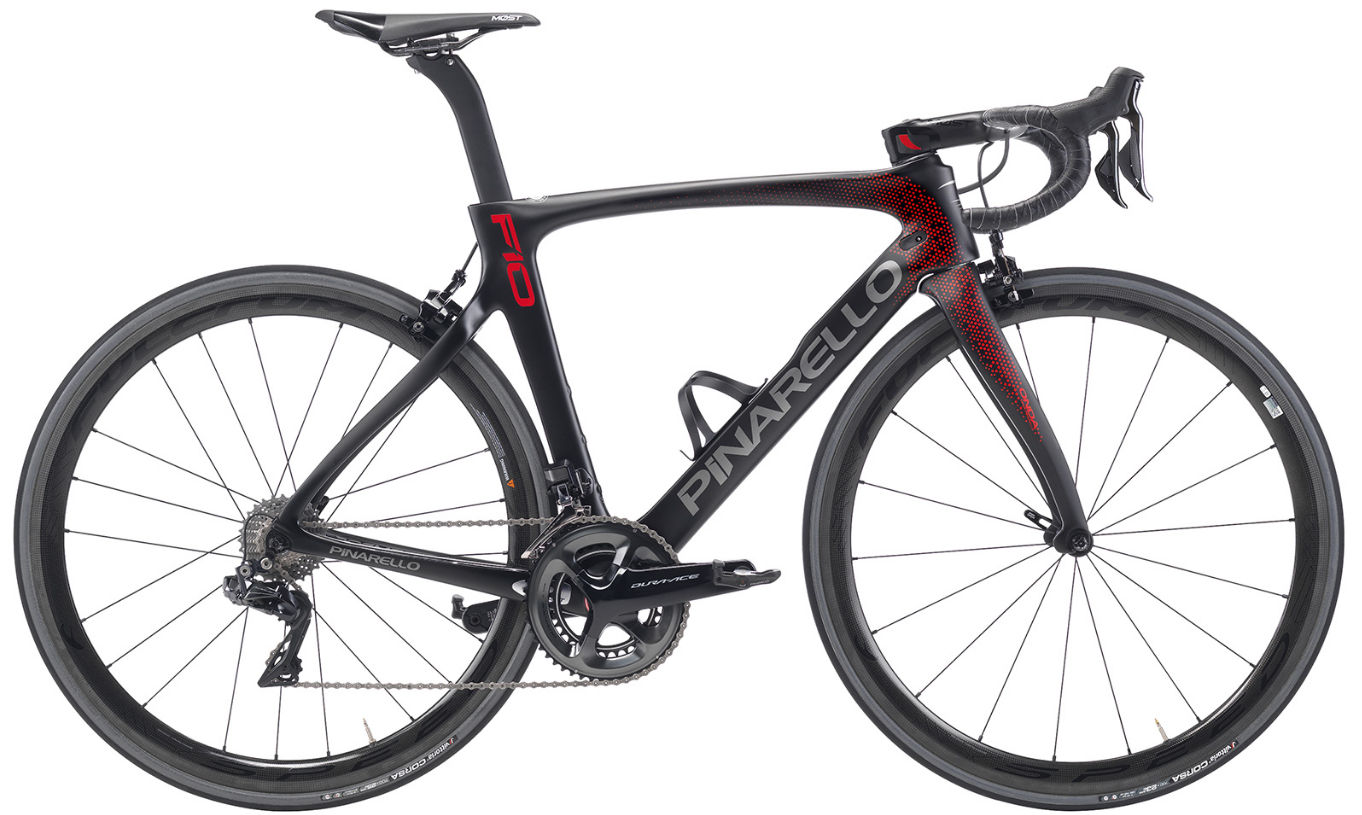

2017 Pinarello Dogma F10 geometry

Name: 2017 Pinarello Dogma F10
Brand: Pinarello

Full frame geometry for the 2017 Pinarello Dogma F10, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Standover (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
42	493	351	74.4	69.2	105	498	732	67	564	406	960	43	81
44	501	357	74.4	70	110	503	740	67	564	406	960	43	76
46.5	512	367	74.4	70.5	115	515	750	72	573	406	968	43	73
50	520	374	74	71.4	120	525	757	72	575	406	970	43	67
47	525	373	74	71.4	125	525	762	72	575	406	970	43	67
51.5	527	380	73.7	72	125	535	764	72	577	406	972	43	63
53	542	386	73.7	72.5	139	545	778	72	583	406	978	43	60
54	550	386	73.4	72.8	147	550	786	72	583	406	978	43	58
55	561	389	73.4	72.8	158	557	797	72	590	408	987	43	58
56	569	391	73	73.2	165	565	804	72	591	408	988	43	56
57.5	584	397	73	73.7	179	575	819	72	596	408	993	43	53
59.5	612	394	72.4	73.4	215	587	846	67	605	408	1004	43	55
62	651	420	72	73.4	255	620	883	67	633	411	1035	43	55

All measurements in millimetres unless marked (°) for angles.
