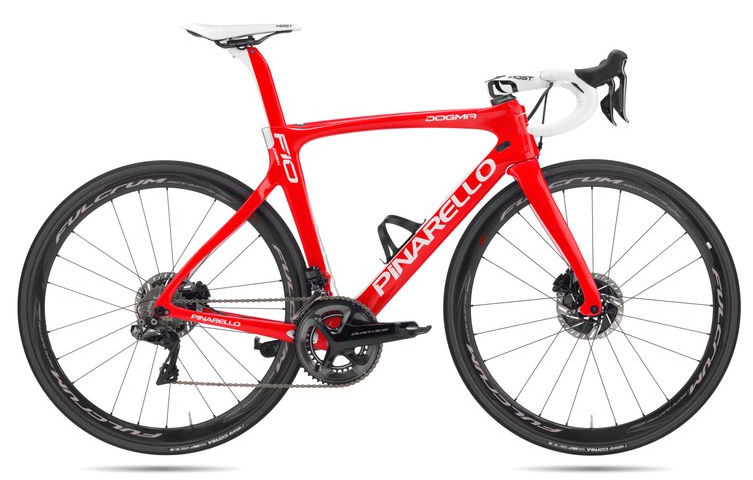

2019 Pinarello Dogma F10 Disc geometry

Name: 2019 Pinarello Dogma F10 Disc
Brand: Pinarello

Full frame geometry for the 2019 Pinarello Dogma F10 Disc, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Fork rake (mm)
44	501	357	74.4	70	110	503	435	67	564	406	43
46.5	512	367	74.4	70.5	115	515	455	72	573	406	43
50	520	374	74	71.4	120	525	480	72	575	406	43
51.5	527	380	73.7	72	125	535	495	72	577	406	43
53	542	386	73.7	72.5	139	545	510	72	583	406	43
54	550	386	73.4	72.8	147	550	520	72	583	406	43
55	561	389	73.4	72.8	158	557	530	72	590	408	43
56	569	391	73	73.2	165	565	540	72	591	408	43
57.5	584	397	73	73.7	179	575	555	72	596	408	43
59.5	612	394	72.4	73.4	215	587	575	67	605	408	43
62	651	410	72	73.4	255	620	615	67	633	411	43

All measurements in millimetres unless marked (°) for angles.
