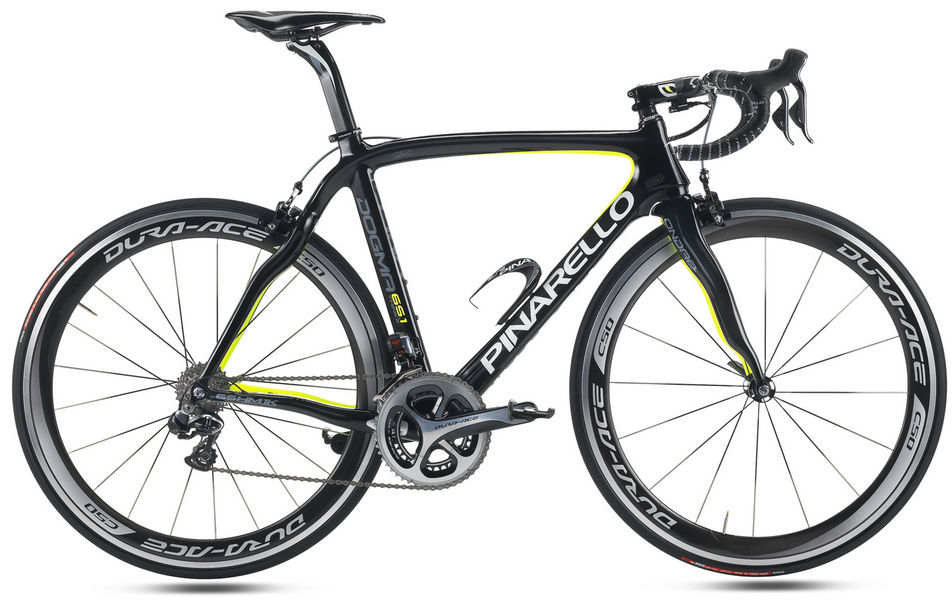

2014 Pinarello Dogma 65.1 geometry

Name: 2014 Pinarello Dogma 65.1
Brand: Pinarello

Full frame geometry for the 2014 Pinarello Dogma 65.1, size by size — stack, reach, angles and tube lengths.

Does this bike fit you? Get sized in minutes — no tape measure, no appointment.

Geometry by size

Size	Stack (mm)	Reach (mm)	Seat angle (°)	Head angle (°)	Head tube (mm)	Top tube (mm)	Seat tube (mm)	BB drop (mm)	Front centre (mm)	Chainstay (mm)	Wheelbase (mm)	Fork rake (mm)	Trail (mm)
42	493	351	74.4	69.2	105	498	435	67	564	406	960	43	81
44	501	357	74.4	70	110	503	455	67	564	406	960	43	76
46.5	512	367	74.4	70.5	115	515	480	72	573	406	968	43	73
50	520	374	74	71.4	120	525	515	72	575	406	970	43	67
48	525	373	74	71.4	125	527	480	72	575	406	970	43	67
51.5	527	380	73.7	72	125	535	530	72	577	406	972	43	63
53	542	386	73.7	72.5	139	545	545	72	583	406	978	43	60
54	550	386	73.4	72.8	147	550	555	72	583	406	978	43	58
55	561	389	73.4	72.8	158	557	565	72	590	408	987	43	58
56	569	391	73	73.2	165	565	575	72	591	408	988	43	56
57.5	584	397	73	73.7	179	575	590	72	596	408	993	43	53
59.5	612	394	72.4	73.4	215	587	610	67	605	408	1004	43	55
62	651	410	72	73.4	255	620	635	67	633	411	1035	43	55

All measurements in millimetres unless marked (°) for angles.
