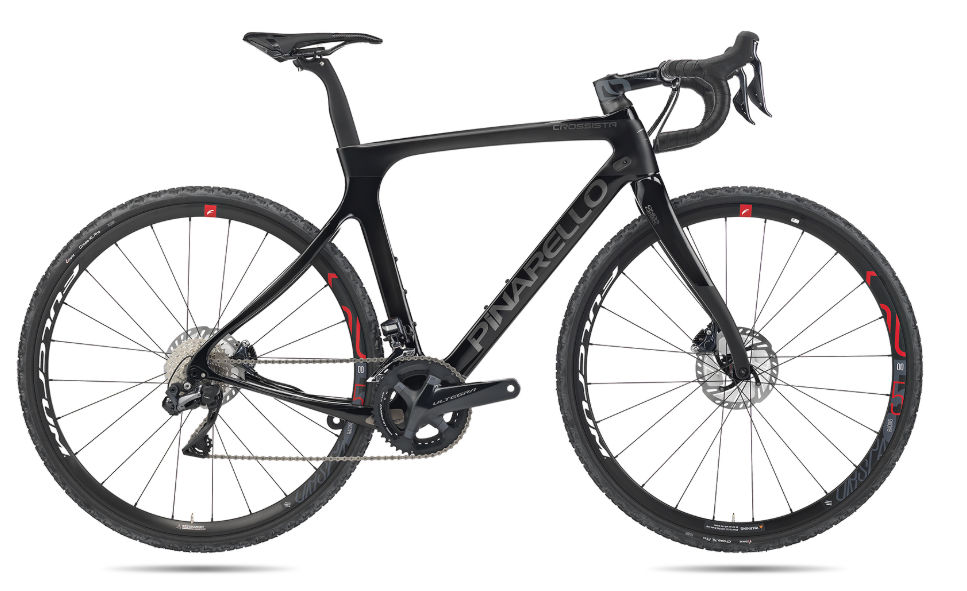

2019 Pinarello Crossista geometry
Full frame geometry for the 2019 Pinarello Crossista, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 49 | 522 | 366 | 75 | 70.5 | 100 | 510 | 480 | 763 | 65 | 584 | 425 | 1000 | 50 | 72 |
| 50.5 | 541 | 371 | 74.5 | 71 | 118 | 525 | 495 | 781 | 65 | 592 | 425 | 1008 | 50 | 69 |
| 52 | 557 | 377 | 74 | 71 | 135 | 540 | 510 | 797 | 65 | 603 | 425 | 1019 | 50 | 69 |
| 54 | 576 | 382 | 73.5 | 71 | 155 | 555 | 530 | 818 | 65 | 614 | 425 | 1031 | 50 | 69 |
| 56 | 594 | 387 | 73 | 72 | 170 | 570 | 550 | 838 | 65 | 615 | 425 | 1032 | 50 | 62 |
| 58 | 610 | 392 | 72.5 | 72 | 187 | 585 | 570 | 857 | 65 | 625 | 425 | 1042 | 50 | 62 |
All measurements in millimetres unless marked (°) for angles.
