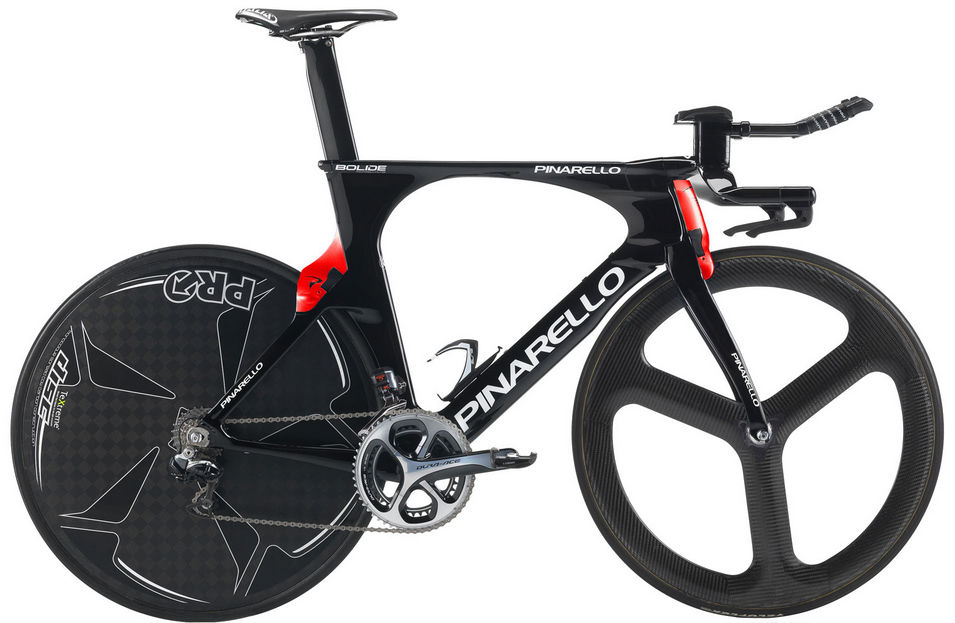

2014 Pinarello Bolide geometry
Full frame geometry for the 2014 Pinarello Bolide, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 45 | 469 | 377 | 77 | 72 | 74 | 488 | 525 | 62 | 557 | 385 | 934 | 43 |
| 52.5 | 492 | 402 | 77 | 72 | 94 | 514 | 550 | 62 | 582 | 385 | 959 | 43 |
| 55 | 508 | 430 | 77 | 72 | 110 | 545 | 565 | 62 | 614 | 385 | 991 | 43 |
All measurements in millimetres unless marked (°) for angles.
