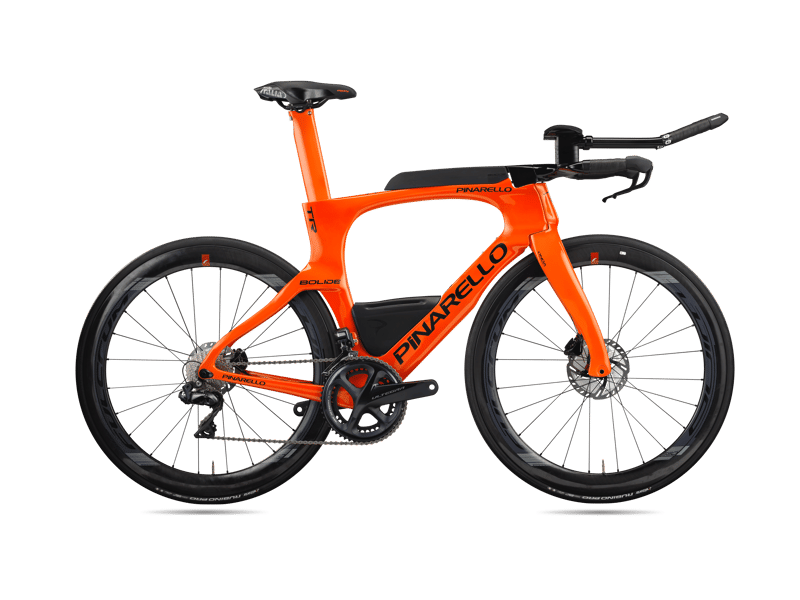

2022 Pinarello Bolid TR geometry
Full frame geometry for the 2022 Pinarello Bolid TR, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | BB drop (mm) | Chainstay (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| 450 | 492 | 369 | 78 | 72 | 90 | 480 | 472 | 65 | 395 | 43 |
| 485 | 515 | 386 | 78 | 72.5 | 106 | 500 | 492 | 70 | 395 | 43 |
| 520 | 530 | 405 | 78 | 73 | 120 | 520 | 507 | 70 | 395 | 43 |
| 550 | 543 | 424 | 78 | 73 | 134 | 540 | 537 | 70 | 395 | 43 |
All measurements in millimetres unless marked (°) for angles.
