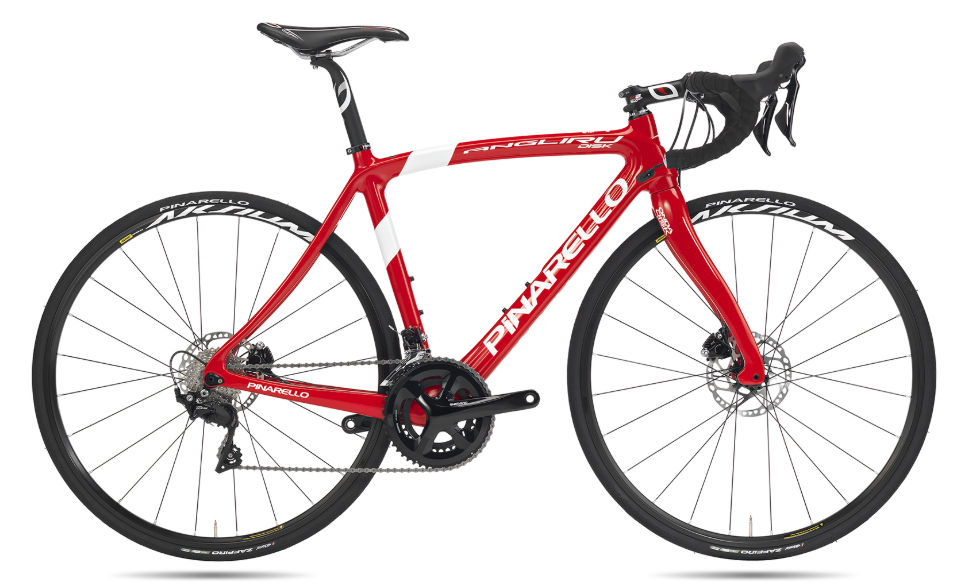

2019 Pinarello Angliru Disk geometry
Full frame geometry for the 2019 Pinarello Angliru Disk, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 43 | 512 | 345 | 73.5 | 69.5 | 120 | 505 | 450 | 742 | 67 | 566 | 413 | 970 | 47 | 77 |
| 46 | 525 | 357 | 73.5 | 70.5 | 130 | 518 | 480 | 764 | 67 | 574 | 413 | 978 | 47 | 70 |
| 49 | 540 | 370 | 73.5 | 72 | 140 | 532 | 510 | 787 | 67 | 577 | 413 | 981 | 47 | 61 |
| 52 | 568 | 371 | 73 | 73 | 160 | 545 | 540 | 813 | 72 | 577 | 413 | 979 | 47 | 54 |
| 53.5 | 582 | 379 | 73 | 73 | 175 | 557 | 555 | 827 | 72 | 589 | 413 | 991 | 47 | 54 |
| 55 | 597 | 388 | 73 | 73 | 190 | 590 | 570 | 843 | 72 | 601 | 413 | 1003 | 47 | 54 |
| 57 | 621 | 390 | 72.5 | 73 | 215 | 585 | 590 | 866 | 72 | 611 | 413 | 1013 | 47 | 54 |
All measurements in millimetres unless marked (°) for angles.
