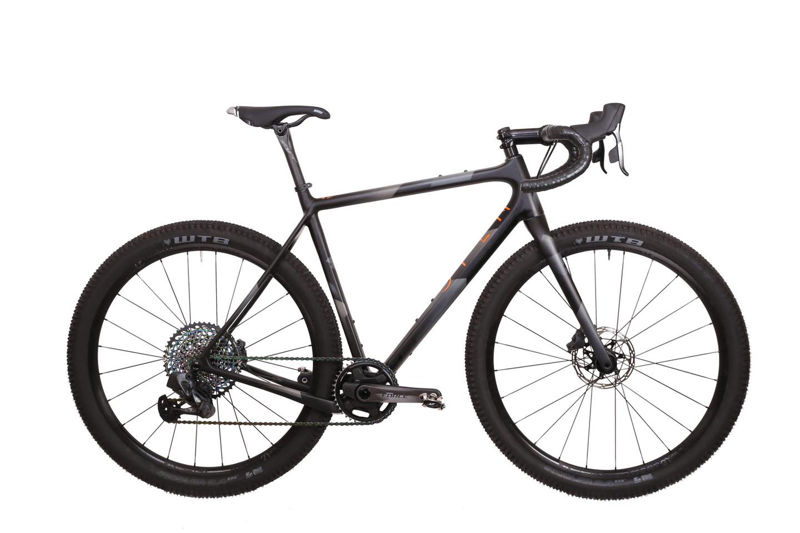

2022 Open WI.DE. geometry
Full frame geometry for the 2022 Open WI.DE., size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 520 | 346 | 74.5 | 68 | 99 | 510 | 464 | 707 | 80 | 583 | 420 | 990 | 50 |
| S | 545 | 358 | 74 | 69 | 125 | 530 | 495 | 739 | 77 | 596 | 420 | 1004 | 50 |
| M | 570 | 370 | 73.5 | 71 | 150 | 550 | 530 | 777 | 75 | 599 | 420 | 1009 | 50 |
| L | 595 | 382 | 73.5 | 71.5 | 170 | 570 | 550 | 794 | 75 | 613 | 420 | 1022 | 50 |
| XL | 620 | 394 | 73.5 | 71.5 | 196 | 590 | 564 | 817 | 75 | 634 | 420 | 1042 | 50 |
All measurements in millimetres unless marked (°) for angles.
