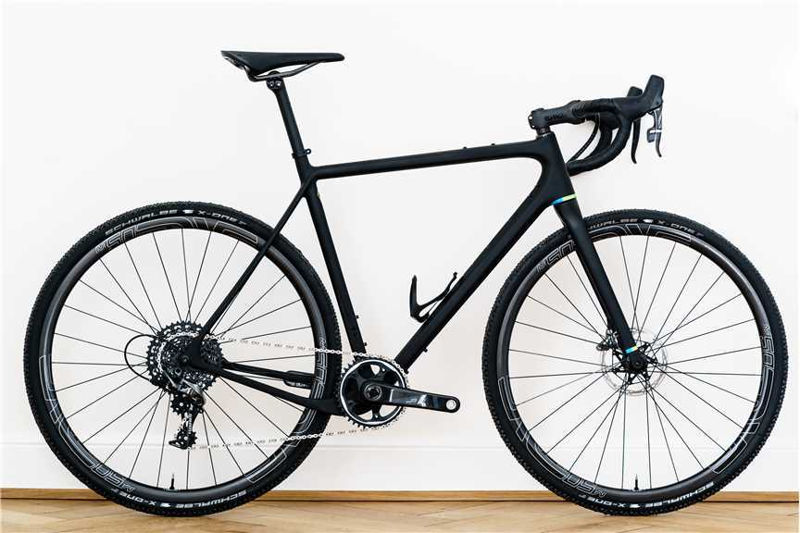

2022 Open U.P.P.E.R geometry
Full frame geometry for the 2022 Open U.P.P.E.R, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 522 | 365 | 74 | 69.5 | 105 | 528 | 520 | 743 | 70 | 592 | 420 | 1002 | 50 |
| M | 551 | 376 | 73.5 | 71 | 130 | 549 | 540 | 767 | 70 | 598 | 420 | 1008 | 50 |
| L | 580 | 387 | 73.5 | 72.5 | 155 | 570 | 560 | 791 | 70 | 604 | 420 | 1014 | 50 |
| XL | 604 | 401 | 73.5 | 72.5 | 180 | 591 | 580 | 815 | 70 | 622 | 420 | 1032 | 50 |
All measurements in millimetres unless marked (°) for angles.
