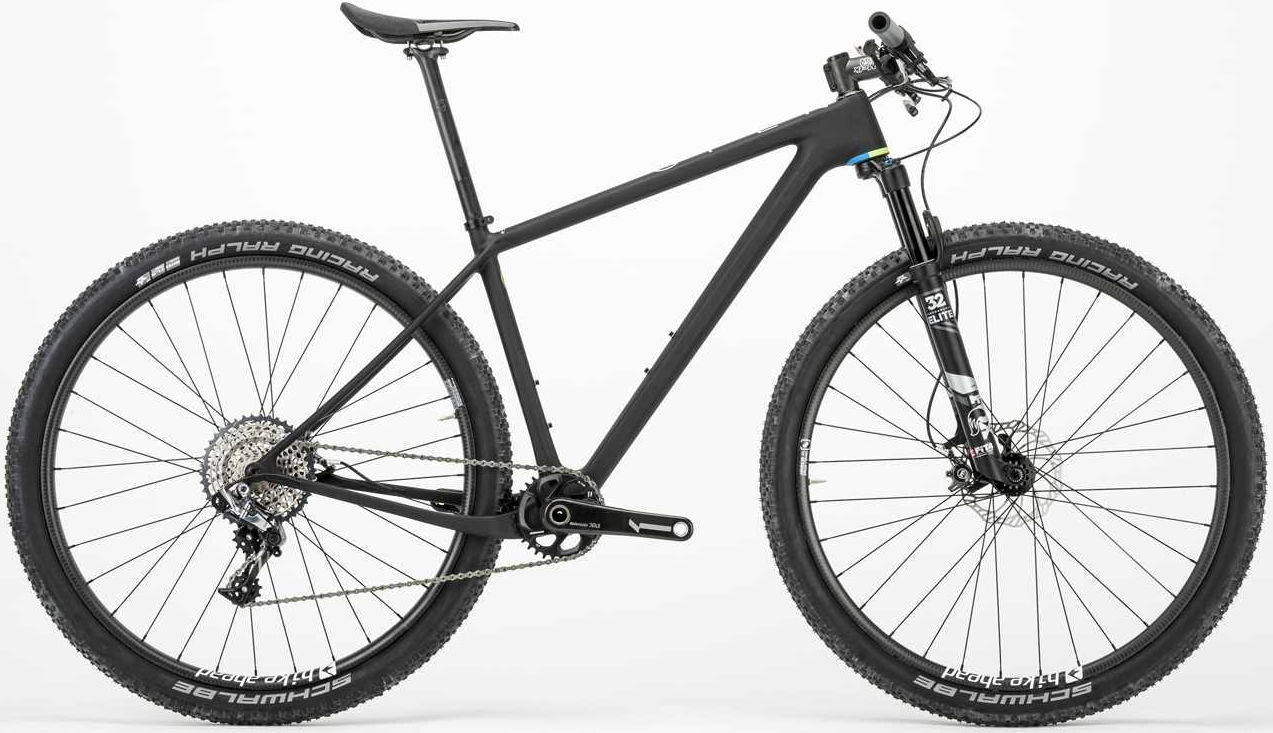

2016 Open Oneplus geometry
Full frame geometry for the 2016 Open Oneplus, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 577 | 412 | 72 | 74 | 102 | 576 | 420 | 810 | 47 | 631 | 423 | 1049 |
| M | 607 | 431 | 72.7 | 73.5 | 97 | 602 | 445 | 831 | 66 | 650 | 440 | 1082 |
| L | 637 | 450 | 72.7 | 73 | 135 | 643 | 500 | 879 | 62 | 678 | 440 | 1111 |
All measurements in millimetres unless marked (°) for angles.
