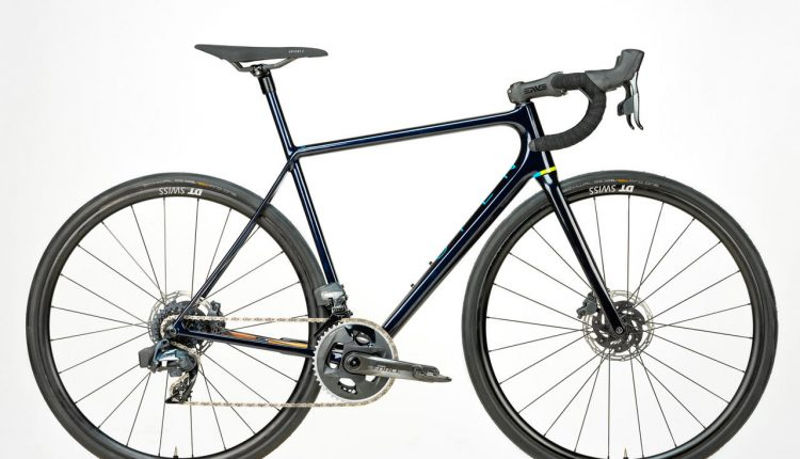

2022 Open Min.d geometry
Full frame geometry for the 2022 Open Min.d, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 535 | 361 | 74 | 71 | 135 | 530 | 700 | 743 | 73 | 578 | 405 | 971 | 50 |
| M | 560 | 373 | 73.5 | 72.5 | 158 | 550 | 740 | 769 | 71 | 584 | 405 | 978 | 50 |
| L | 585 | 385 | 73.5 | 72.5 | 184 | 569 | 780 | 792 | 71 | 604 | 405 | 998 | 50 |
| XL | 610 | 397 | 73.5 | 72.5 | 210 | 589 | 820 | 816 | 71 | 623 | 405 | 1018 | 50 |
All measurements in millimetres unless marked (°) for angles.
