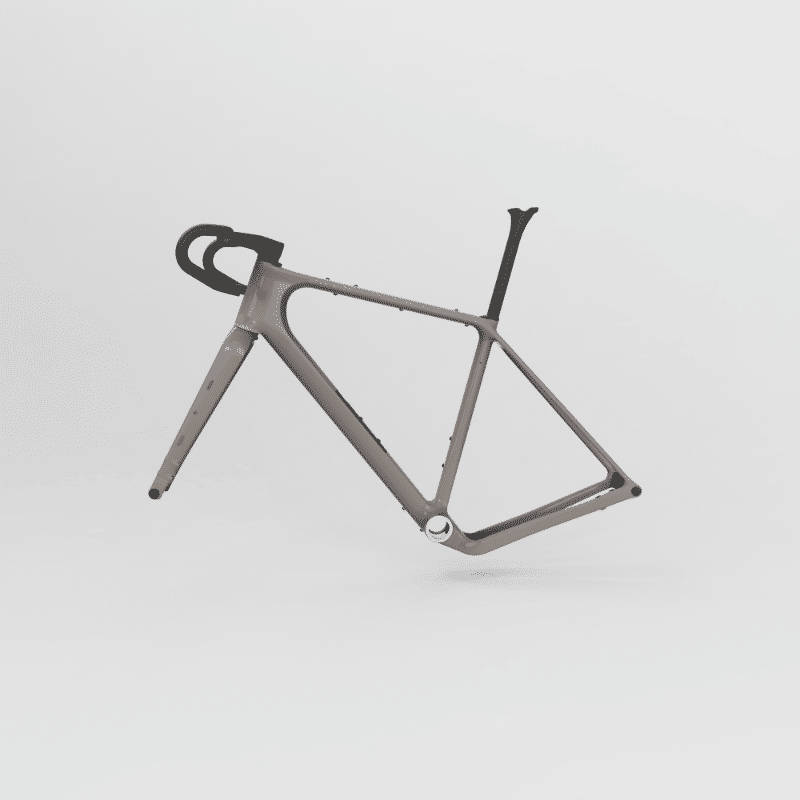

2026 Open WI.DE. 2.0 geometry
Full frame geometry for the 2026 Open WI.DE. 2.0, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 540 | 349 | 73.5 | 69 | 104 | 487 | 417 | 718 | 96 | 607 | 440 | 1029 |
| S | 565 | 361 | 73.5 | 70.5 | 127 | 508 | 449 | 750 | 91 | 608 | 440 | 1032 |
| M | 590 | 374 | 73.5 | 70.5 | 156 | 528 | 480 | 781 | 88 | 630 | 440 | 1055 |
| L | 615 | 386 | 73.5 | 71.5 | 173 | 548 | 504 | 804 | 87 | 633 | 440 | 1058 |
| XL | 640 | 398 | 73.5 | 71.5 | 200 | 567 | 518 | 819 | 86 | 653 | 440 | 1079 |
All measurements in millimetres unless marked (°) for angles.
