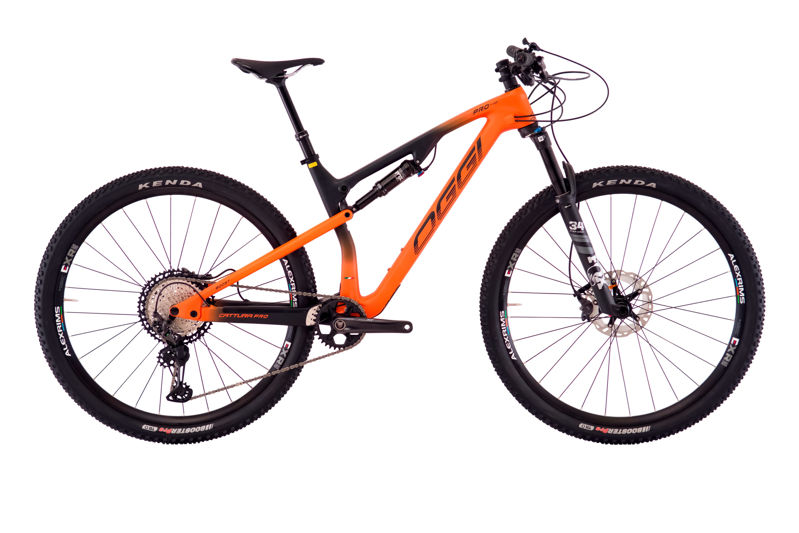

2023 Oggi Capture Pro T-20 XT geometry
Full frame geometry for the 2023 Oggi Capture Pro T-20 XT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 607 | 415 | 75.3 | 67 | 90 | 572 | 400 | 1142 |
| M | 616 | 445 | 75.3 | 67 | 100 | 607 | 440 | 1176 |
| L | 625 | 475 | 75.3 | 67 | 110 | 639 | 460 | 1210 |
| XL | 644 | 500 | 75.3 | 67 | 130 | 685 | 500 | 1242 |
All measurements in millimetres unless marked (°) for angles.
