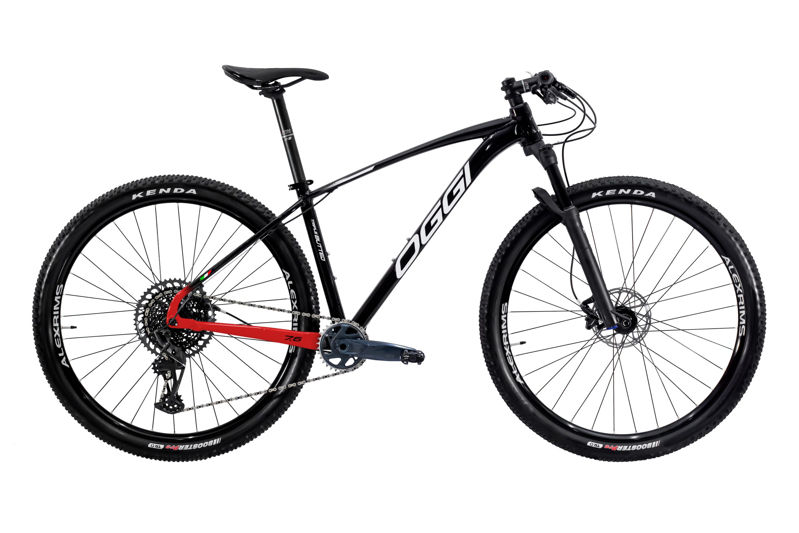

2022 Oggi Big Wheel 7.6 geometry
Full frame geometry for the 2022 Oggi Big Wheel 7.6, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 598 | 419 | 74.5 | 68 | 90 | 580 | 375 | 1111 |
| M | 603 | 446 | 74.5 | 68 | 95 | 609 | 425 | 1140 |
| L | 608 | 471 | 74.5 | 68 | 100 | 635 | 460 | 1167 |
| XL | 617 | 484 | 74.5 | 68 | 110 | 650 | 510 | 1183 |
All measurements in millimetres unless marked (°) for angles.
