2022 Oggi · MH

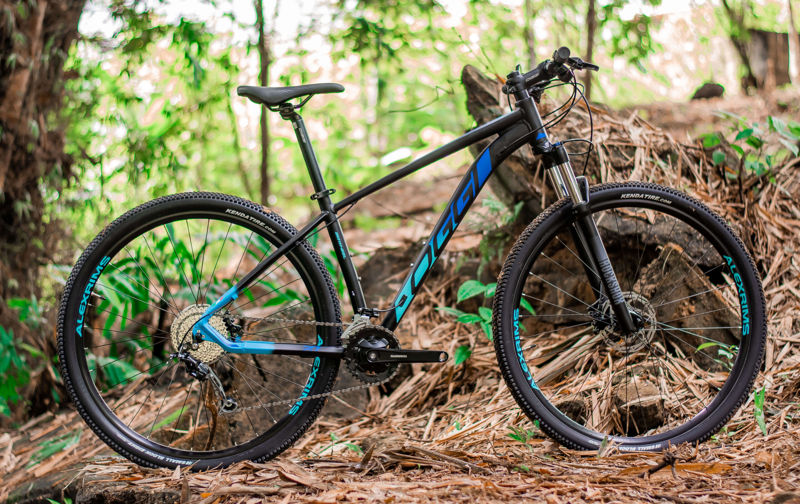

2022 Oggi Big Wheel 7.1 geometry
Full frame geometry for the 2022 Oggi Big Wheel 7.1, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 15.5" | 636 | 391 | 73 | 115 | 572 | 394 | 440 | 1075 |
| 17" | 636 | 410 | 73 | 115 | 592 | 432 | 440 | 1096 |
| 19" | 636 | 434 | 73 | 115 | 617 | 483 | 440 | 1120 |
| 21" | 636 | 462 | 73 | 115 | 646 | 533 | 440 | 1148 |
All measurements in millimetres unless marked (°) for angles.
