2023 Oggi · MHB

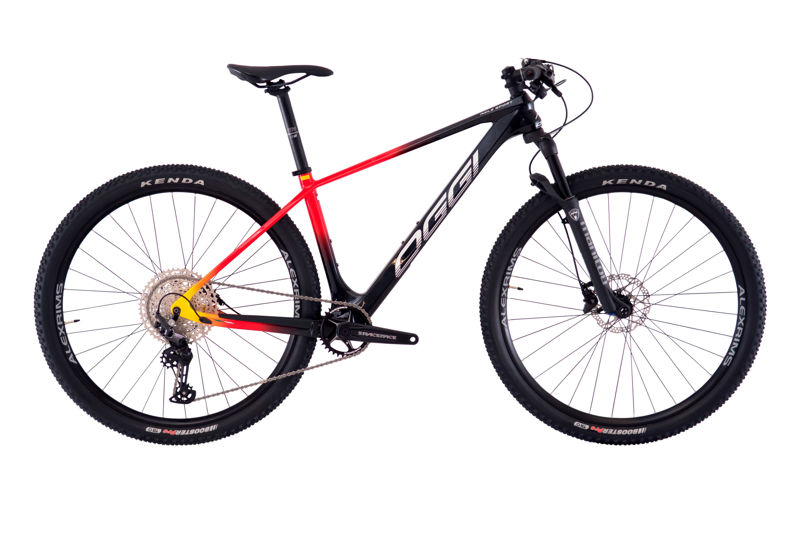

2023 Oggi Agile Sport geometry
Full frame geometry for the 2023 Oggi Agile Sport, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 598 | 421 | 75.1 | 68 | 90 | 580 | 375 | 1115 |
| M | 603 | 449 | 75.1 | 68 | 95 | 609 | 425 | 1145 |
| L | 608 | 474 | 75.1 | 68 | 100 | 635 | 460 | 1171 |
| XL | 617 | 486 | 75.1 | 68 | 110 | 650 | 510 | 1188 |
All measurements in millimetres unless marked (°) for angles.
