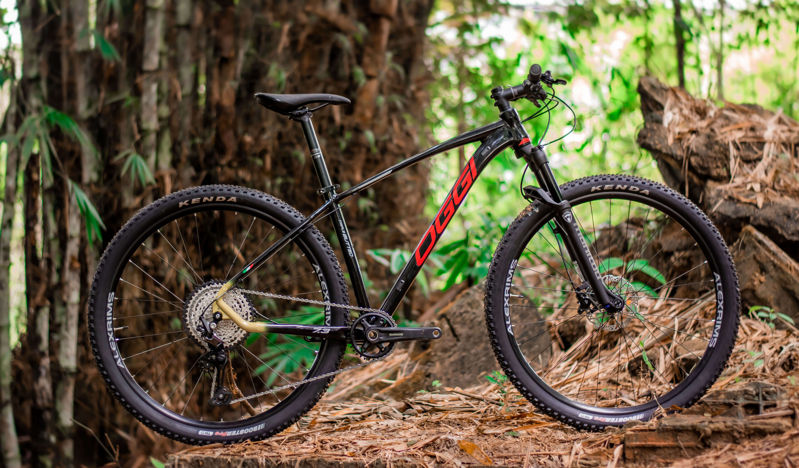

2022 Oggi Big Wheel 7.3 geometry
Full frame geometry for the 2022 Oggi Big Wheel 7.3 , size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| 15.5" (S) | 610 | 394 | 73.5 | 68.5 | 100 | 563 | 394 | 1093 |
| 17" (M) | 615 | 409 | 73.5 | 68.5 | 105 | 580 | 432 | 1111 |
| 19" (L) | 625 | 431 | 73.5 | 68.5 | 115 | 604 | 483 | 1135 |
| 21" (XL) | 634 | 449 | 73.5 | 68.5 | 125 | 626 | 533 | 1158 |
All measurements in millimetres unless marked (°) for angles.
