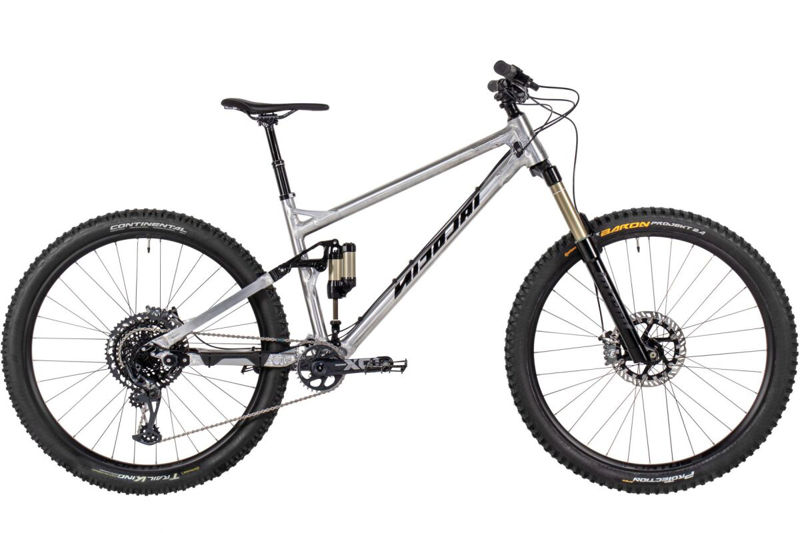

2022 Nicolai Saturn 16 geometry
Full frame geometry for the 2022 Nicolai Saturn 16, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| m | 618 | 490 | 78.3 | 64 | 110 | 620 | 440 | 720 | 447 | 1272 | 44 |
| S | 618 | 465 | 78.3 | 64 | 110 | 593 | 405 | 720 | 447 | 1247 | 44 |
| I | 635 | 515 | 78.3 | 64 | 130 | 647 | 455 | 734 | 447 | 1306 | 44 |
| x | 654 | 535 | 78.3 | 64 | 150 | 671 | 475 | 754 | 453 | 1340 | 44 |
| xxl | 672 | 555 | 78.3 | 64 | 170 | 695 | 520 | 798 | 453 | 1369 | 44 |
| Xxxl | 690 | 570 | 78.3 | 64 | 190 | 713 | 550 | 827 | 453 | 1391 | 44 |
All measurements in millimetres unless marked (°) for angles.
