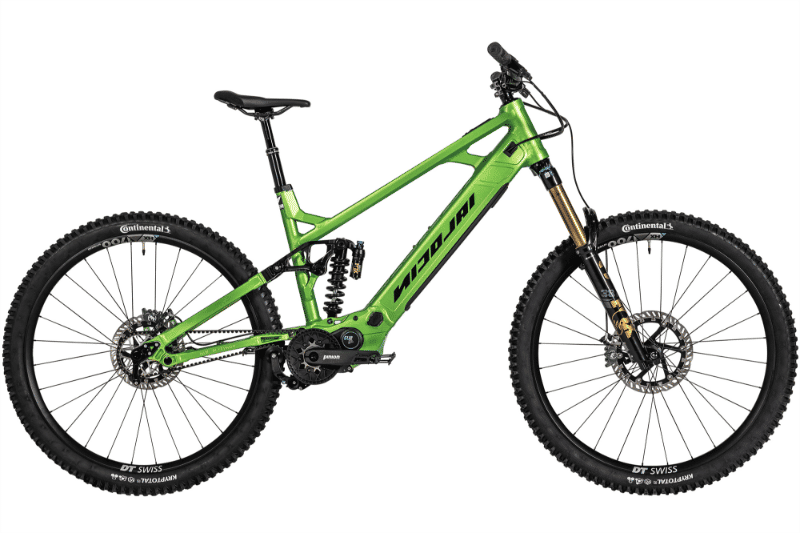

2026 Nicolai S16 MGU geometry
Full frame geometry for the 2026 Nicolai S16 MGU, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 636 | 475 | 77.5 | 64.5 | 150 | 617 | 365 | 690 | 0 | 459 | 1283 | 44 |
| M | 645 | 495 | 77.5 | 64.5 | 160 | 639 | 435 | 720 | 0 | 459 | 1307 | 44 |
| L | 654 | 515 | 77.5 | 64.5 | 170 | 661 | 455 | 725 | 0 | 459 | 1332 | 44 |
| XL | 663 | 535 | 77.5 | 64.5 | 180 | 683 | 475 | 725 | 0 | 459 | 1355 | 44 |
| XXL | 673 | 555 | 77.5 | 64.5 | 190 | 705 | 505 | 750 | 0 | 459 | 1380 | 44 |
All measurements in millimetres unless marked (°) for angles.
