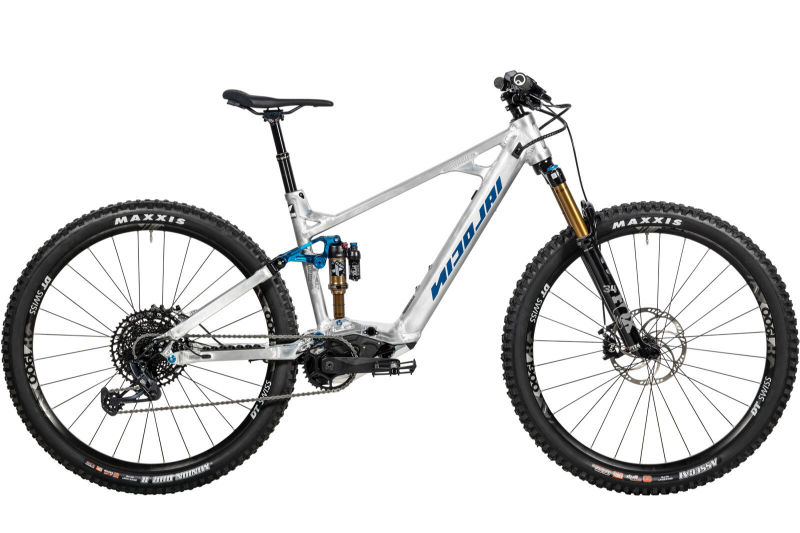

2025 Nicolai S14 SWIFT HLS geometry
Full frame geometry for the 2025 Nicolai S14 SWIFT HLS, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 611 | 447 | 76.5 | 64.8 | 110 | 594 | 400 | 730 | -30 | 452 | 1221 | 44 |
| M | 620 | 480 | 76.5 | 64.8 | 120 | 629 | 440 | 722 | -30 | 452 | 1258 | 44 |
| L | 629 | 500 | 76.5 | 64.8 | 130 | 650 | 455 | 722 | -30 | 452 | 1283 | 44 |
| XL | 638 | 517 | 76.5 | 64.8 | 140 | 670 | 475 | 722 | -30 | 452 | 1304 | 44 |
| XXL | 656 | 538 | 76.5 | 64.8 | 150 | 695 | 505 | 728 | -30 | 452 | 1333 | 44 |
All measurements in millimetres unless marked (°) for angles.
