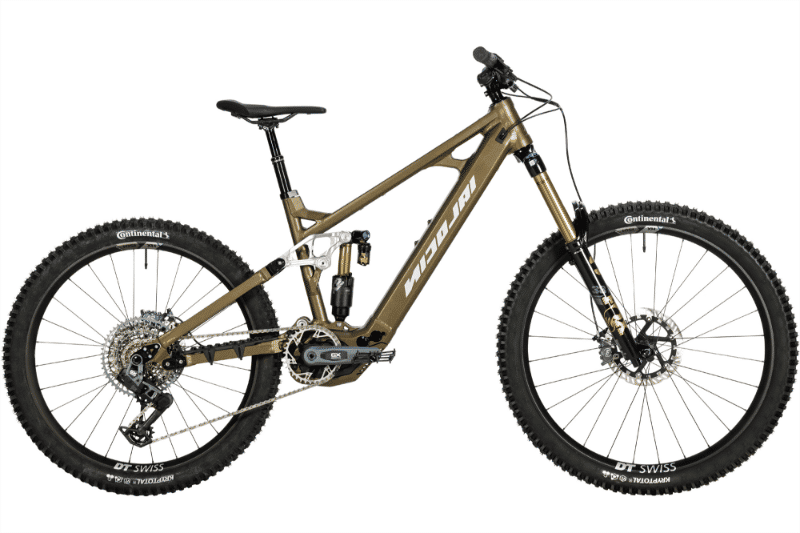

2025 Nicolai S18 SWIFT geometry
Full frame geometry for the 2025 Nicolai S18 SWIFT, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 635 | 452.5 | 77.8 | 63.5 | 120 | 588 | 375 | 710 | 0 | 812 | 440 | 1252 | 44 |
| M | 645 | 475 | 77.8 | 63.8 | 130 | 614 | 420 | 723 | 0 | 836 | 440 | 1276 | 44 |
| L | 656 | 497.5 | 77.8 | 64 | 140 | 639 | 445 | 734 | 0 | 860 | 448 | 1308 | 44 |
| XL | 667 | 520 | 77.8 | 64.3 | 150 | 665 | 470 | 738 | 0 | 884 | 454 | 1337 | 44 |
| XXL | 677 | 537.5 | 77.8 | 64.5 | 160 | 685 | 495 | 749 | 0 | 903 | 462 | 1365 | 44 |
All measurements in millimetres unless marked (°) for angles.
