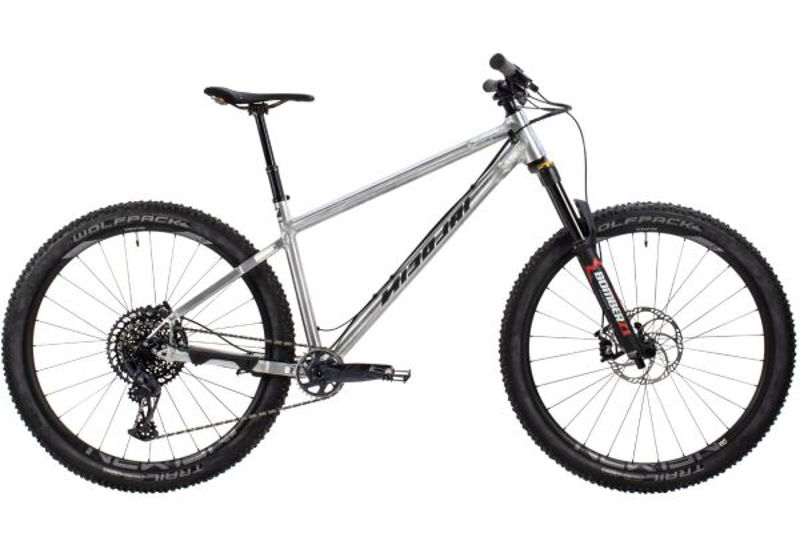

2023 Nicolai Argon GAM geometry
Full frame geometry for the 2023 Nicolai Argon GAM, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|
| S | 637 | 450 | 110 | 603 | 405 | 714 | 435 | 1208 |
| m | 646 | 475 | 120 | 630 | 440 | 723 | 445 | 1242 |
| L | 655 | 495 | 130 | 652 | 455 | 737 | 445 | 1266 |
| X | 672 | 515 | 150 | 673 | 475 | 755 | 450 | 1302 |
| XXL | 689 | 540 | 170 | 702 | 520 | 797 | 450 | 1335 |
All measurements in millimetres unless marked (°) for angles.
