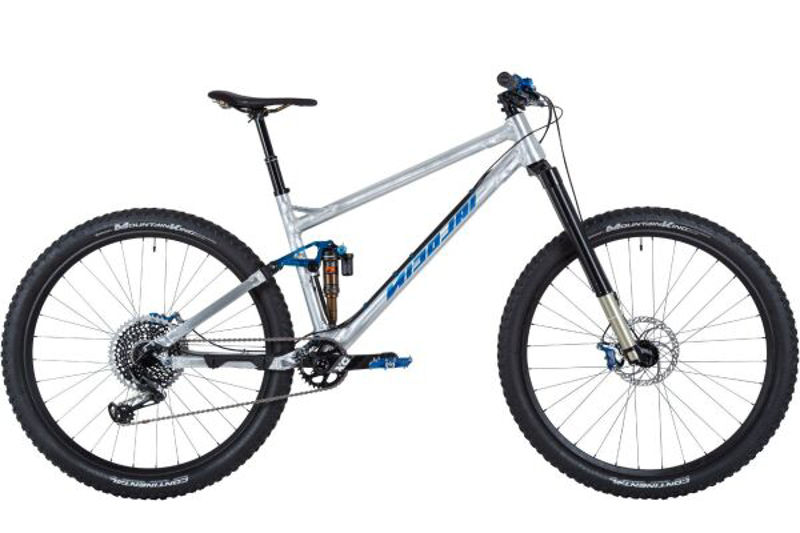

2022 Nicolai Saturn 14 ST geometry
Full frame geometry for the 2022 Nicolai Saturn 14 ST, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S | 603 | 447 | 76.2 | 65.2 | 110 | 595 | 405 | 730 | -28 | 446 | 1206 |
| M | 611 | 479 | 76.2 | 65.2 | 120 | 626 | 440 | 736 | -29 | 446 | 1241 |
| L | 621 | 500 | 76.5 | 65.7 | 130 | 648 | 455 | 742 | -15 | 446 | 1264 |
| XL | 629 | 519 | 76.2 | 65.2 | 140 | 668 | 475 | 759 | -29 | 446 | 1291 |
| XXL | 639 | 539 | 76.2 | 65.2 | 150 | 693 | 520 | 801 | -29 | 446 | 1313 |
All measurements in millimetres unless marked (°) for angles.
