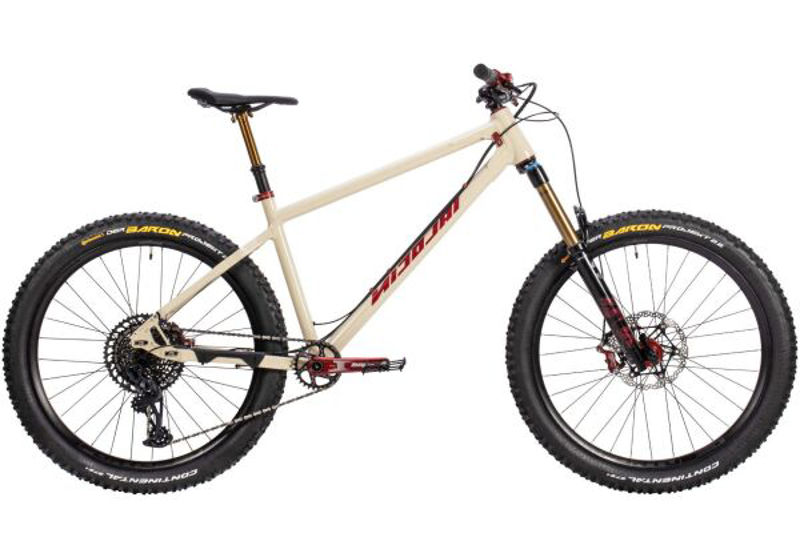

2022 Nicolai Argon GEN geometry
Full frame geometry for the 2022 Nicolai Argon GEN, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|
| S | 616 | 435 | 120 | 612 | 415 | 709 | 1213 |
| M | 625 | 455 | 130 | 634 | 435 | 736 | 1237 |
| L | 634 | 475 | 140 | 657 | 455 | 754 | 1267 |
| XL | 642 | 495 | 150 | 680 | 485 | 780 | 1286 |
| XXL | 660 | 515 | 170 | 705 | 505 | 800 | 1315 |
All measurements in millimetres unless marked (°) for angles.
