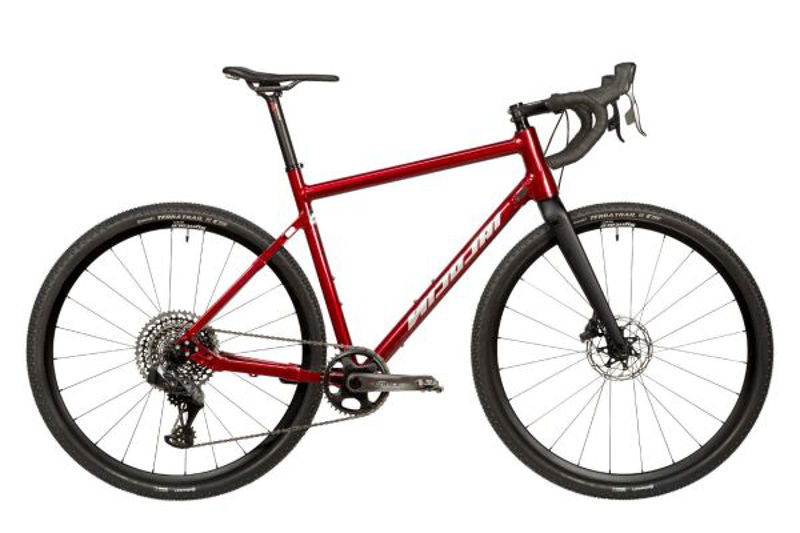

2022 Nicolai Argon GX geometry
Full frame geometry for the 2022 Nicolai Argon GX, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) |
|---|---|---|---|---|---|---|---|---|---|---|
| XS | 548 | 371 | 74 | 70.5 | 120 | 528 | 717 | -75 | 430 | 1012 |
| S | 559 | 380 | 74 | 70.5 | 130 | 545 | 733 | -75 | 430 | 1019 |
| m | 575 | 390 | 73.5 | 71 | 150 | 560 | 754 | -72.5 | 430 | 1036 |
| I | 596 | 403 | 73.5 | 71 | 170 | 580 | 772 | -72.5 | 430 | 1052 |
| XI | 606 | 410 | 73 | 71.5 | 180 | 595 | 793 | -72.5 | 430 | 1062 |
| Xxl | 625 | 424 | 73 | 71.5 | 190 | 615 | 808 | -72.5 | 430 | 1082 |
All measurements in millimetres unless marked (°) for angles.
