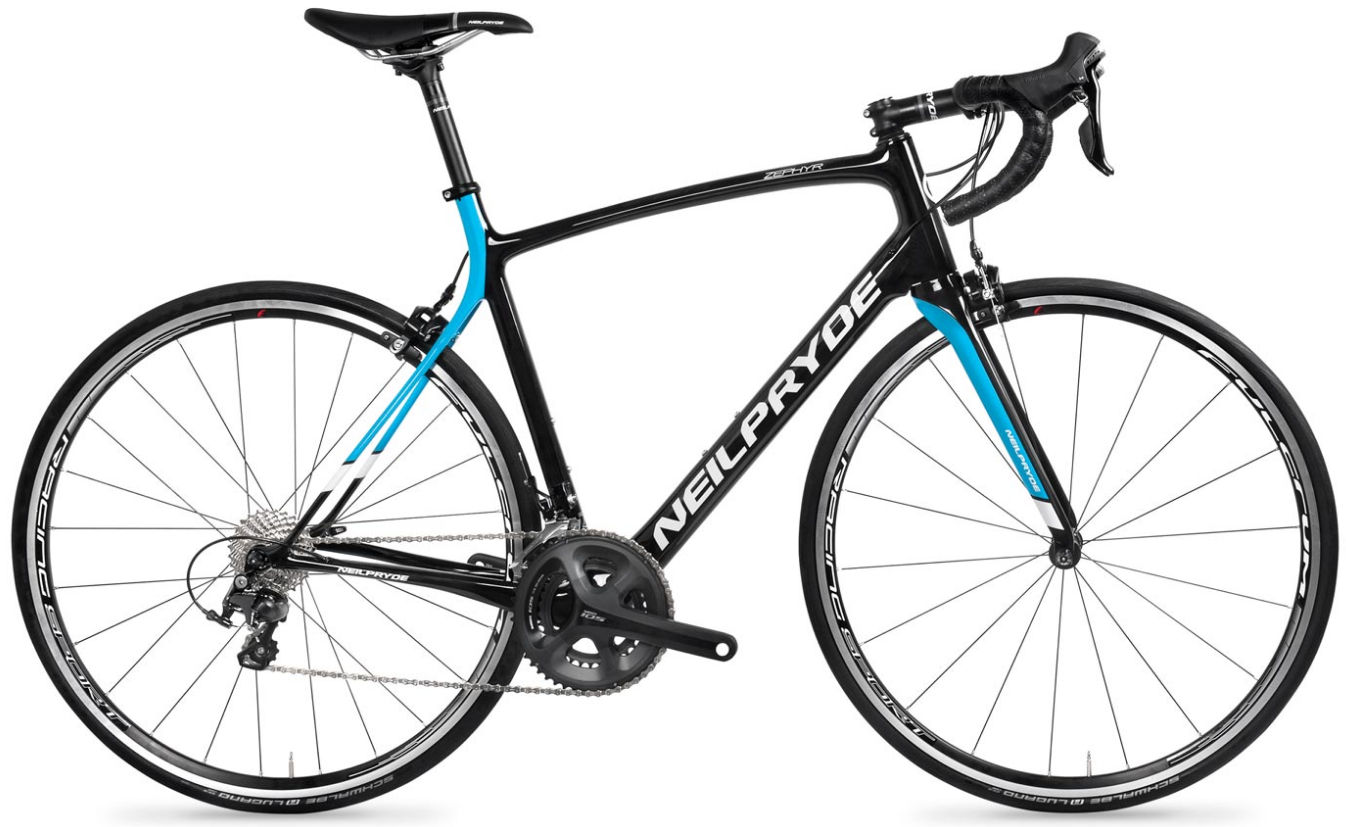

2015 Neil Pryde Zephyr geometry
Full frame geometry for the 2015 Neil Pryde Zephyr, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 525 | 358 | 74.5 | 70.5 | 125 | 500 | 460 | 754 | 75 | 562 | 415 | 978 | 45 | 71 |
| S | 545 | 361 | 73 | 71 | 140 | 525 | 490 | 782 | 75 | 568 | 415 | 978 | 45 | 67 |
| M | 564 | 370 | 73 | 72 | 160 | 540 | 520 | 810 | 72 | 575 | 415 | 985 | 45 | 61 |
| L | 578 | 378 | 73 | 72 | 175 | 555 | 550 | 833 | 72 | 587 | 415 | 998 | 45 | 61 |
| XL | 596 | 390 | 73 | 72.5 | 195 | 570 | 580 | 859 | 70 | 601 | 415 | 1012 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
