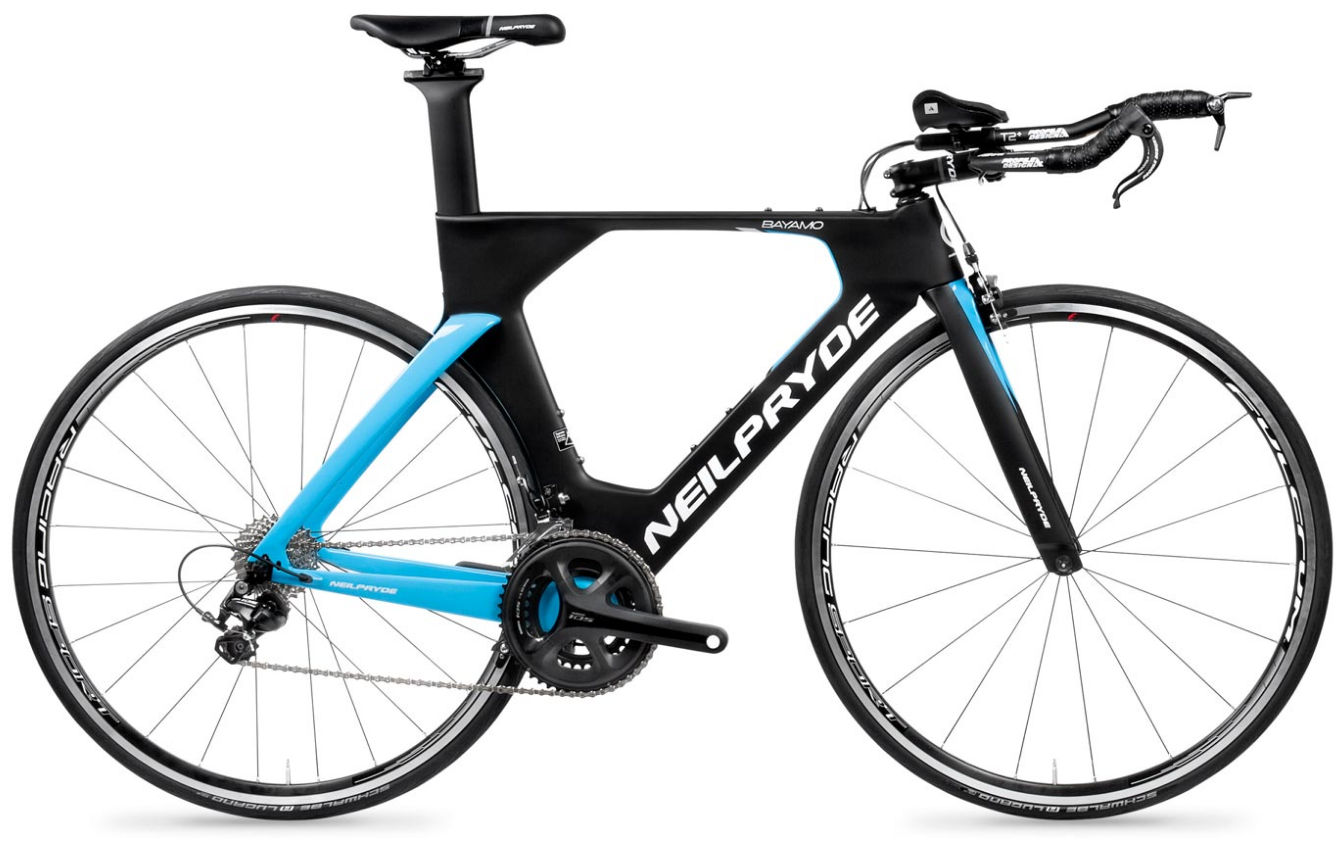

2017 Neil Pryde Bayamo MKII geometry
Full frame geometry for the 2017 Neil Pryde Bayamo MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 479 | 372 | 76 | 72.5 | 80 | 492 | 485 | 753 | 65 | 549 | 390 | 930 | 43 |
| S | 480 | 399 | 76 | 72.8 | 80 | 519 | 485 | 753 | 65 | 576 | 390 | 954 | 43 |
| M | 506 | 415 | 76 | 72.8 | 106 | 541 | 510 | 779 | 65 | 600 | 390 | 979 | 43 |
| L | 532 | 431 | 76 | 72.8 | 134 | 563 | 537 | 806 | 65 | 624 | 390 | 1002 | 43 |
| XL | 558 | 447 | 76 | 72.8 | 161 | 586 | 564 | 833 | 65 | 648 | 390 | 1026 | 43 |
All measurements in millimetres unless marked (°) for angles.
