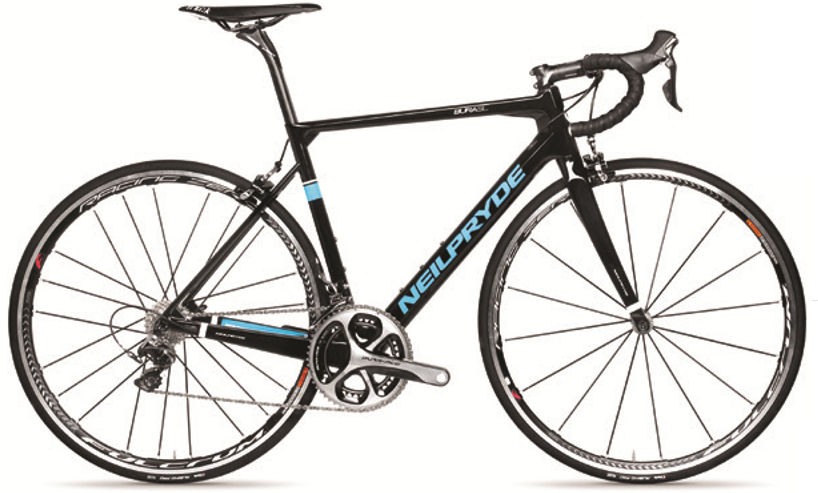

2016 Neil Pryde Bura SL MKII geometry
Full frame geometry for the 2016 Neil Pryde Bura SL MKII, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 504 | 365 | 74.5 | 70.5 | 100 | 505 | 430 | 728 | 75 | 405 | 963 | 45 |
| S | 530 | 378 | 74 | 72.5 | 120 | 530 | 467 | 761 | 75 | 405 | 967 | 45 |
| M | 545 | 383 | 73.5 | 73 | 140 | 545 | 498 | 790 | 70 | 405 | 975 | 45 |
| L | 565 | 388 | 73 | 73 | 160 | 560 | 518 | 811 | 70 | 405 | 985 | 45 |
| XL | 584 | 397 | 73 | 73 | 180 | 575 | 537 | 831 | 70 | 405 | 1000 | 45 |
All measurements in millimetres unless marked (°) for angles.
