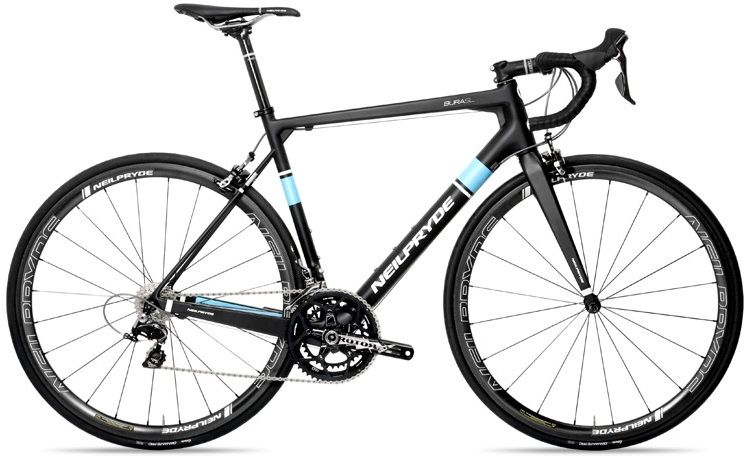

2015 Neil Pryde Bura SL geometry
Full frame geometry for the 2015 Neil Pryde Bura SL, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 500 | 370 | 74.5 | 70.5 | 100 | 510 | 490 | 755 | 75 | 566 | 405 | 969 | 45 | 71 |
| S | 539 | 375 | 74 | 72.5 | 120 | 530 | 510 | 786 | 75 | 566 | 405 | 969 | 45 | 58 |
| M | 555 | 381 | 73.5 | 73 | 140 | 545 | 530 | 810 | 70 | 574 | 405 | 975 | 45 | 55 |
| L | 574 | 385 | 73 | 73 | 160 | 560 | 560 | 836 | 70 | 584 | 405 | 985 | 45 | 55 |
| XL | 593 | 394 | 73 | 73 | 180 | 575 | 580 | 856 | 70 | 599 | 405 | 1000 | 45 | 55 |
All measurements in millimetres unless marked (°) for angles.
