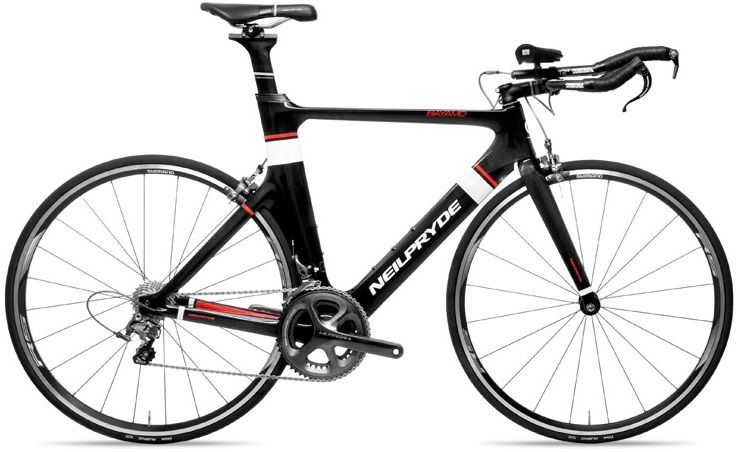

2015 Neil Pryde Bayamo geometry
Full frame geometry for the 2015 Neil Pryde Bayamo, size by size — stack, reach, angles and tube lengths.
Does this bike fit you?
Get sized in minutes — no tape measure, no appointment.
Geometry by size
| Size | Stack (mm) | Reach (mm) | Seat angle (°) | Head angle (°) | Head tube (mm) | Top tube (mm) | Seat tube (mm) | Standover (mm) | BB drop (mm) | Front centre (mm) | Chainstay (mm) | Wheelbase (mm) | Fork rake (mm) | Trail (mm) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| XS | 459 | 376 | 78 | 70.5 | 88 | 474 | 480 | 731 | 45 | 568 | 400 | 970 | 45 | 62 |
| S | 479 | 393 | 78 | 72.5 | 80 | 495 | 503 | 753 | 70 | 567 | 400 | 970 | 45 | 58 |
| M | 504 | 411 | 78 | 72.5 | 101 | 518 | 529 | 779 | 70 | 593 | 400 | 989 | 45 | 58 |
| L | 529 | 429 | 78 | 72.5 | 127 | 541 | 553 | 804 | 70 | 619 | 400 | 1014 | 45 | 58 |
| XL | 552 | 448 | 78 | 72.5 | 152 | 565 | 578 | 828 | 70 | 645 | 400 | 1040 | 45 | 58 |
All measurements in millimetres unless marked (°) for angles.
